3. Mechanical Installation
The weight of the unit is 1 kg.
The dimensions of the required cut out for the panel are 368 mm (W) x 232 mm (H).
A bezel mounting kit is supplied to enable the panel to be neatly mounted in an enclosure.

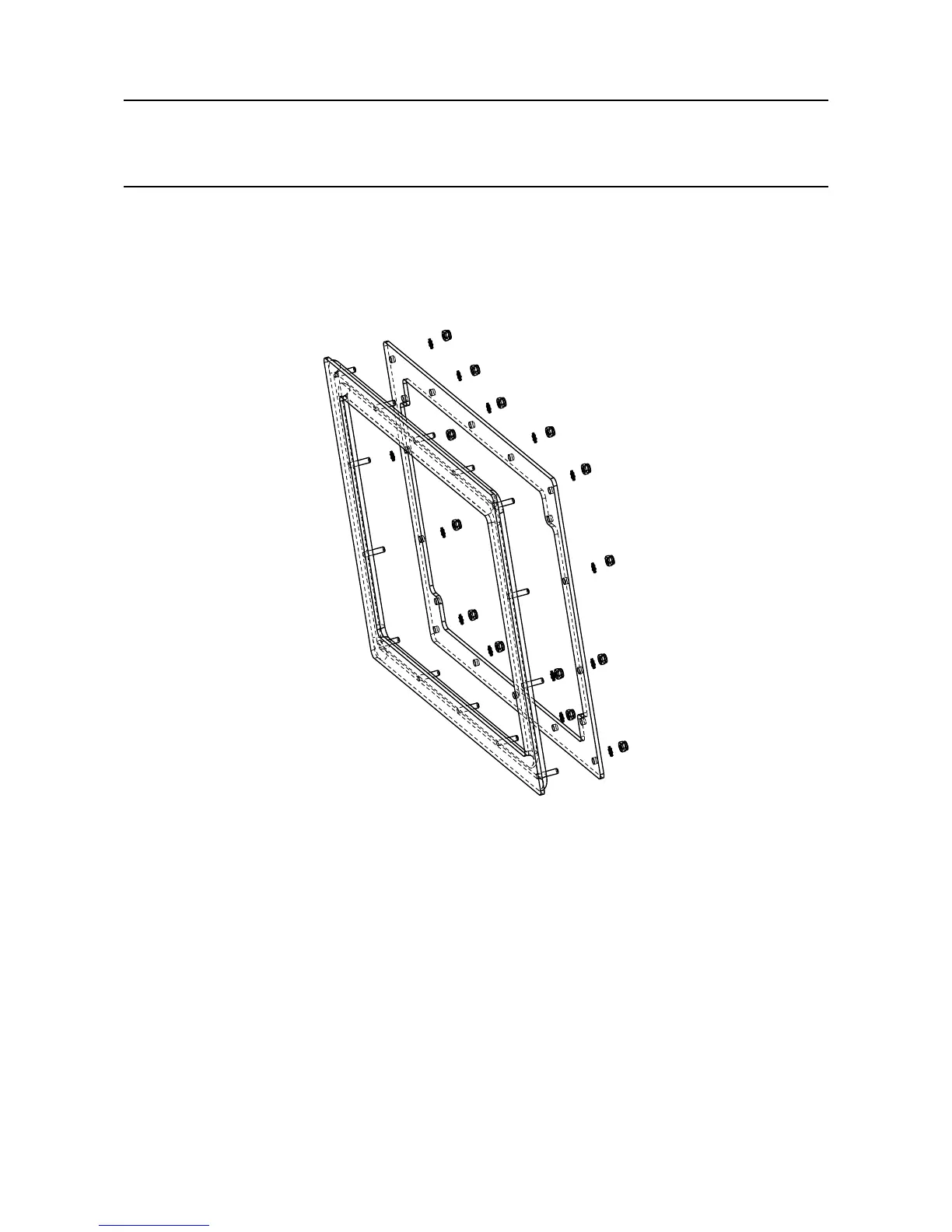

Figure 3.14 Bezel Mounting Kit
