MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
34
3. Mechanical Installation
PLINTH
802
611
Front View Right View
2143
100
PLINTH
802
611
Front View Right View
2143
100

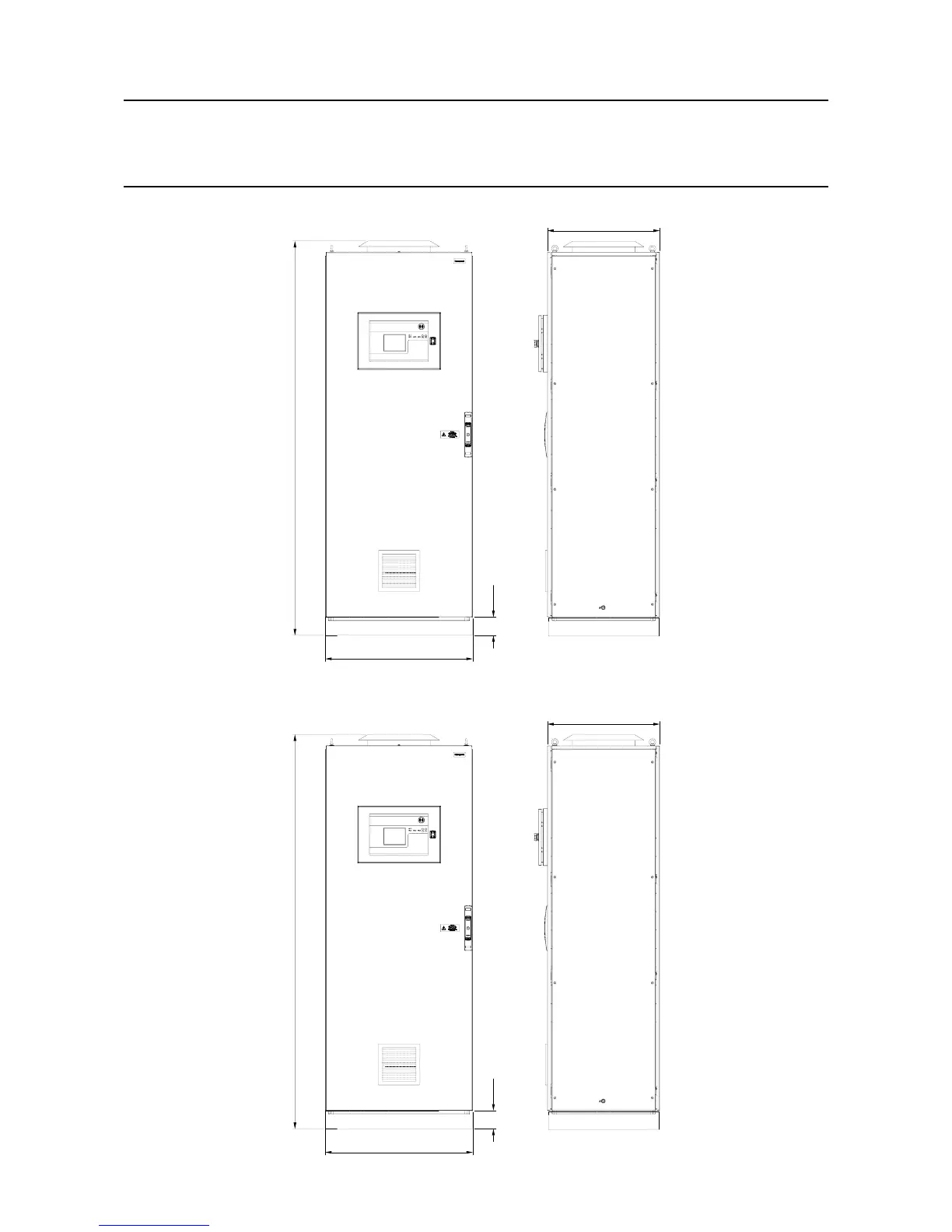

Figure 3.7 Front Access Natural Ventilation
Figure 3.8 Front Access Forced Ventilation
