341

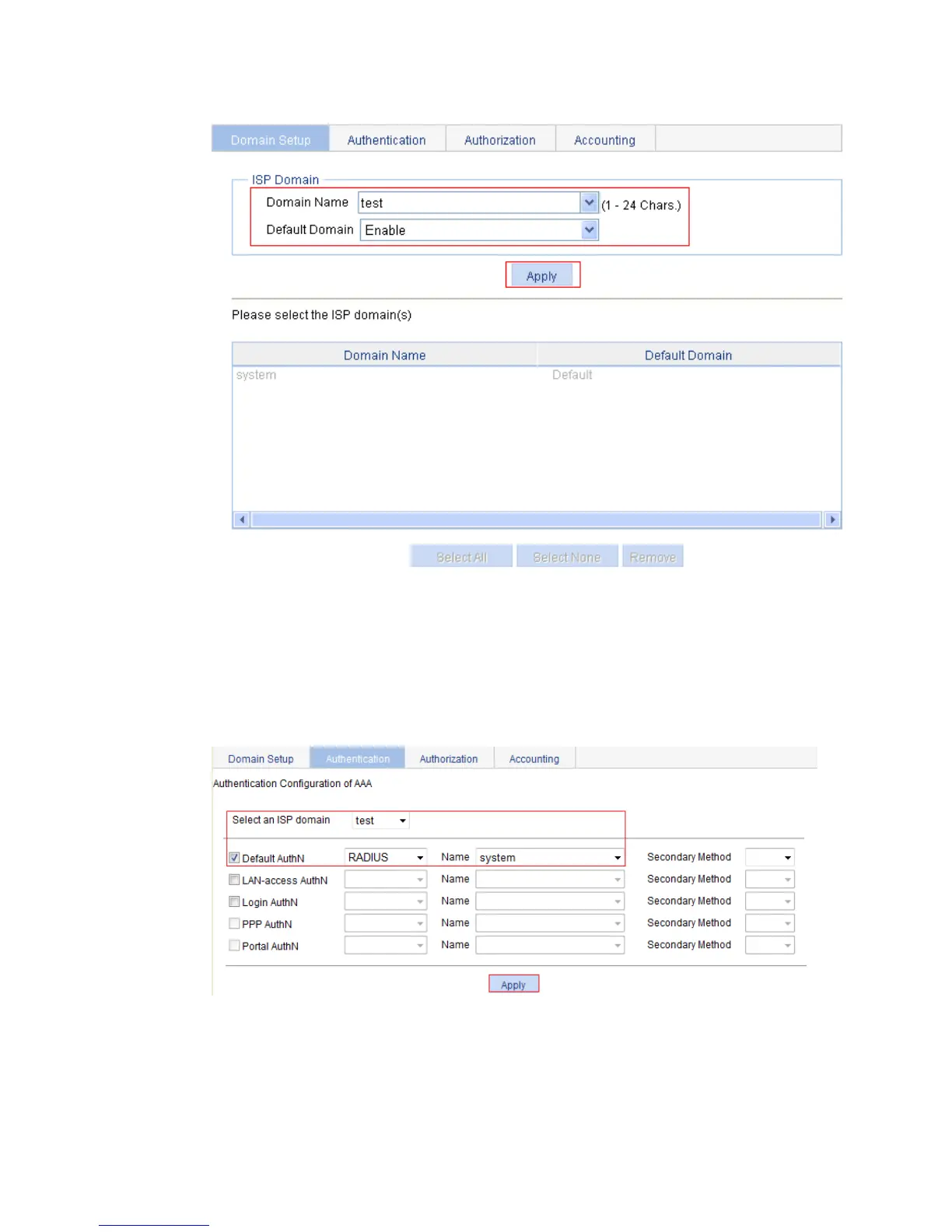

Figure 315 Creating an ISP domain
2. Configure AAA authentication method for the ISP domain:
a. Click the Authentication tab.
b. Select test from the Select an ISP domain list.
c. Select Default AuthN, select authentication method RADIUS from the Default AuthN list, and
select the authentication scheme system from the Name list, as shown in Figure 316.
Figure 316 Configuring AAA authentica
tion method for the ISP domain
d. Click Apply.
A configuration progress dialog box appears, as shown in Figure 317.
