HP MSR SERIES User Manual

344

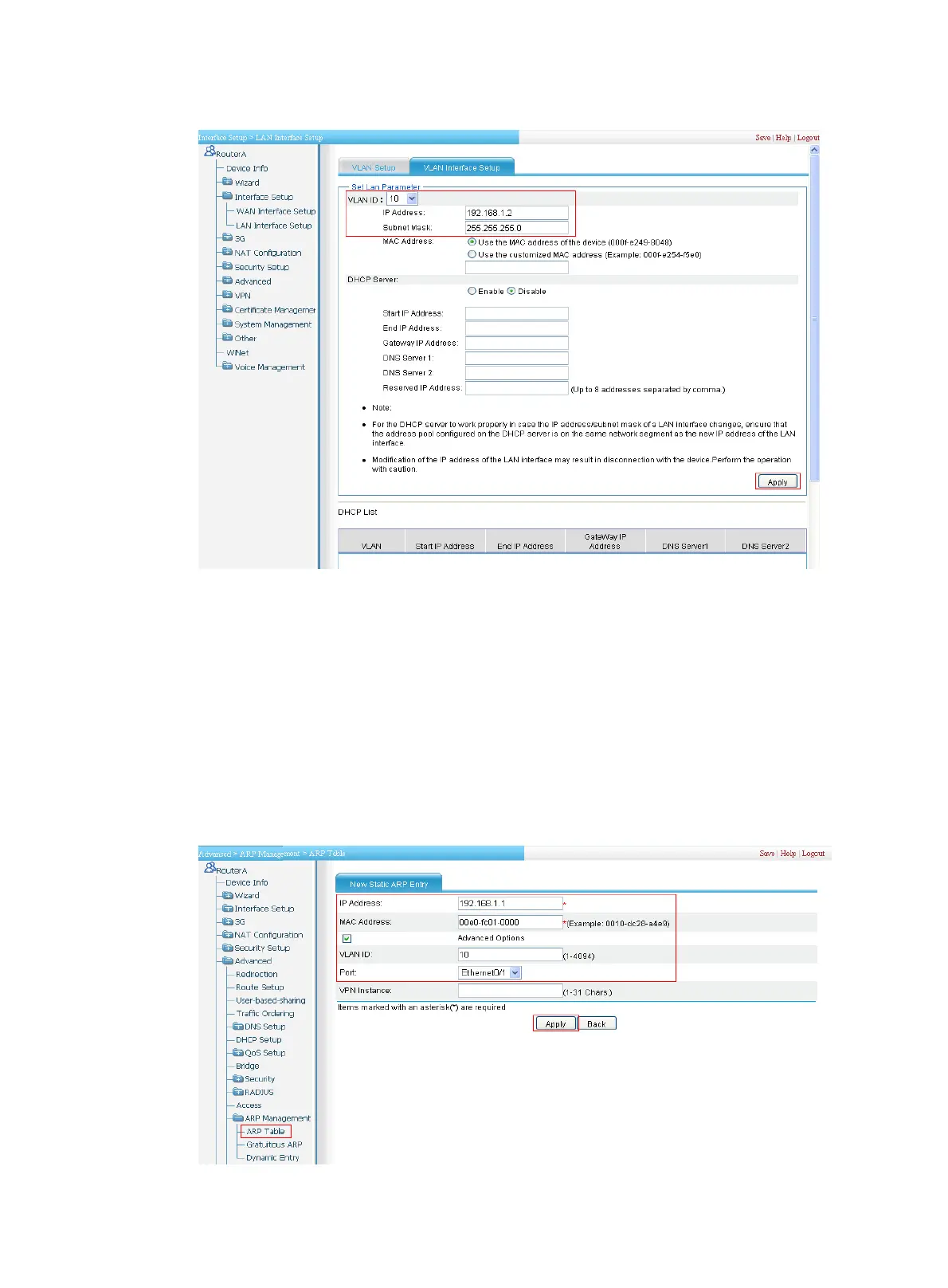

Figure 349 Configuring the IP address of VLAN-interface 10
4. Create a static ARP entry:
a. From the navigation tree, select Advanced > ARP Management > ARP Table and click Add.
b. Enter 192.168.1.1 for IP Address as shown in Figure 350.
c. Enter 00
e0-fc01-0000 for MAC Address.
d. Select the Advanced Options box.
e. Enter 10 for VLAN ID.
f. Select Ethernet0/1 for Port.
g. Click Apply.
Figure 350 Creating a static ARP entry

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
