HP MSR SERIES User Manual

373

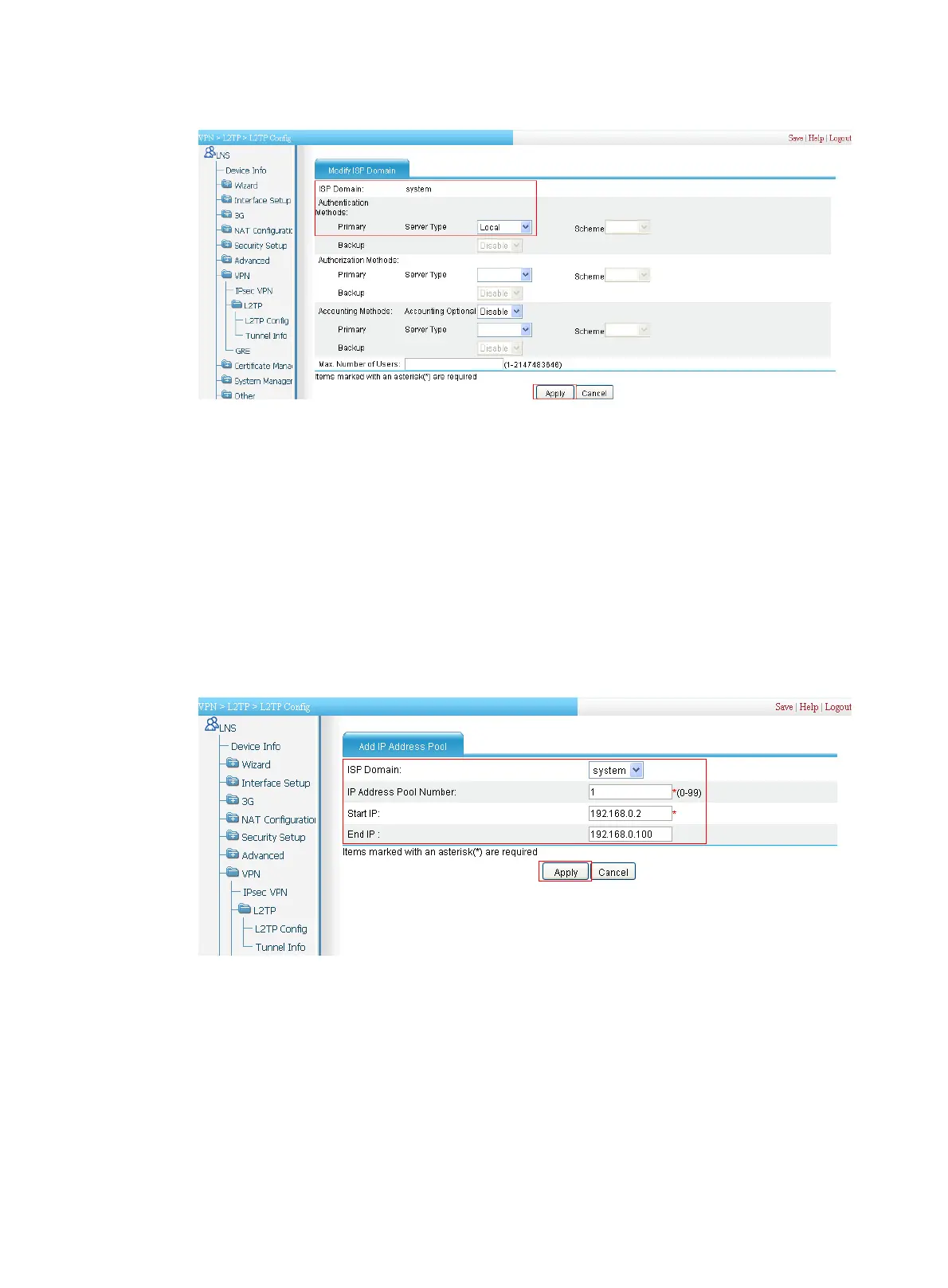

Figure 371 Selecting local authentication for VPN users
4. Configure the address pool used to assign IP addresses to users:
a. On the L2TP group configuration page, click the Add button of the User Address parameter.
The IP address pool configuration page appears, as shown in Figure 372.
b. Selec
t ISP domain system.
c. Enter 1 as the IP address pool number.
d. Enter the start IP address 192.168.0.2.
e. Enter the end IP address 192.168.0.100.
f. Click Apply to finish the IP address pool configuration and return to the L2TP group
configuration page.
Figure 372 Adding an IP address pool
5. Add an L2TP group:
Continue to perform the following configurations on the L2TP group configuration page, as shown
in Figure 373.
a. Enter the L2TP
group name test.
b. Enter the peer tunnel name vpdnuser.
c. Enter the local tunnel name LNS.
d. Select Disable from the Tunnel Authentication list.
e. Enter 192.168.0.1/255.255.255.0 as the PPP server IP/mask.
