a. Click the icon for interface Ethernet 0/1 and then perform the configurations shown
in Figure 384.
b. Selec
t Manual for Connect Mode.
c. Enter IP address 2.2.2.2.
d. Select IP mask 24 (255.255.255.0).
e. Click Confirm.

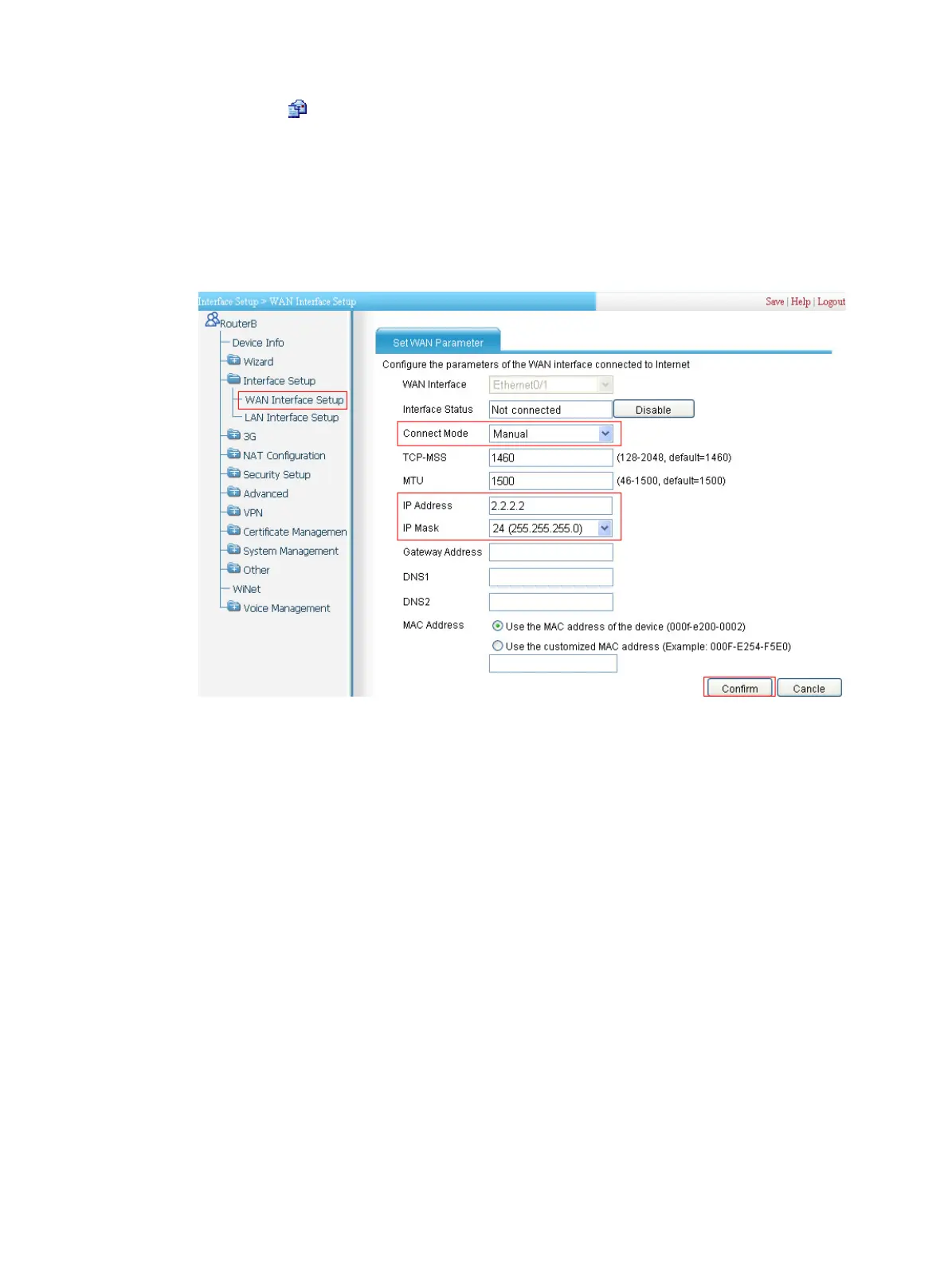

Figure 384 Configuring interface Ethernet 0/1
3. Create a GRE tunnel:
a. Select VPN > GRE from the navigation tree.
b. Click Add and then perform the configurations shown in Figure 385.
c. Enter 0 in the Tunnel Interfa
ce field.
d. Enter IP address/mask 10.1.2.2/24.
e. Enter the source end IP address 2.2.2.2, the IP address of Ethernet 0/1.
f. Enter the destination end IP address 1.1.1.1, the IP address Ethernet 0/1 on Router A.
g. Click Apply.
