Step 2. In the opened window, copy the “SPAN Ground (STIM 300)”
profile as the most similar to the Inertial Labs
TM
INS profile and rename it.
Step 3. Select the profile you created and click “Edit IMU” and then go
to the “States” tab.
Step 4. In the block “Error Model” click “Lock selection”, choose any
model of errors and click “Add From”. In appeared window you can rename
the error model, and correct all parameters according to Fig. 12.9.

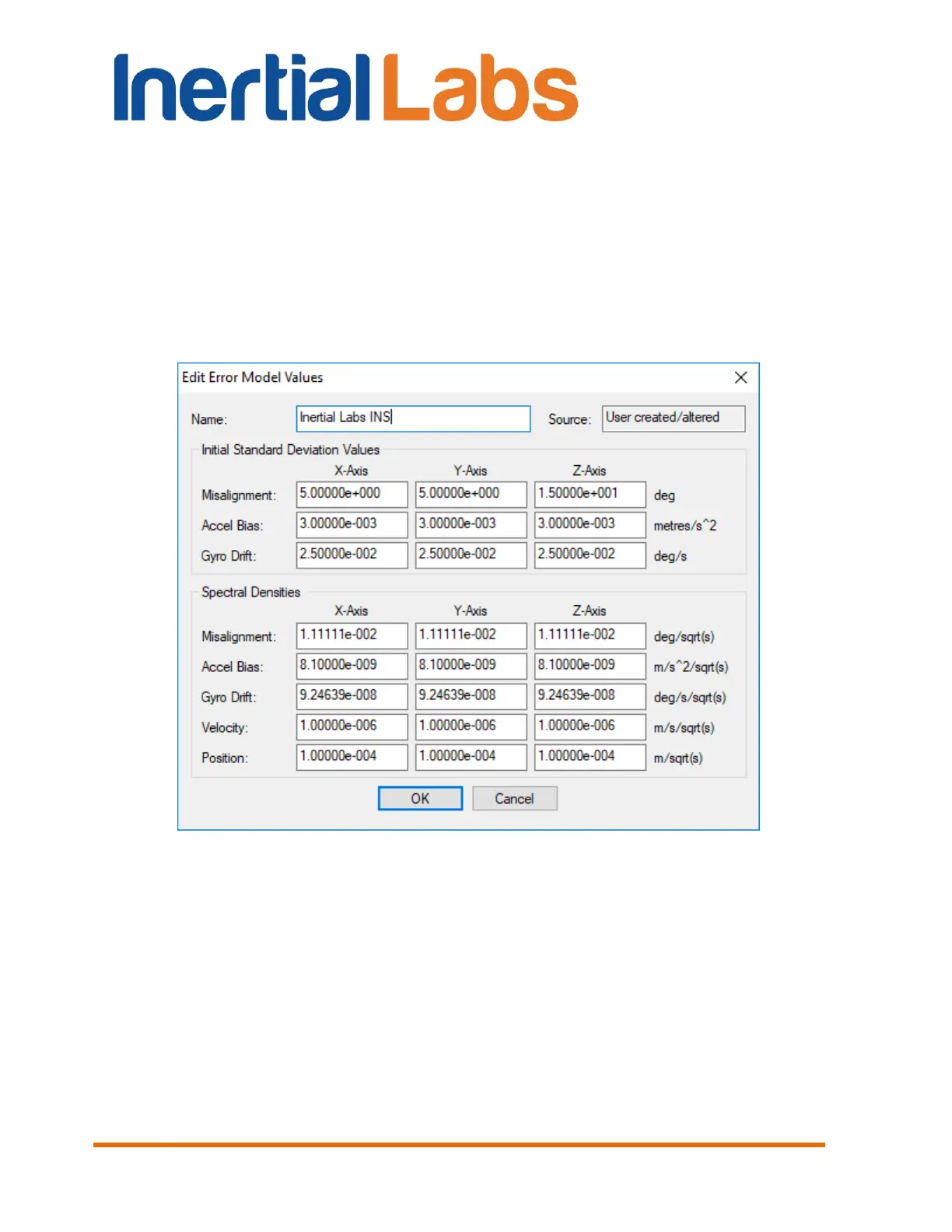

Fig. 12.9
Step 5. After making all the changes, click “Ok” in all windows and
save the changes.
You can also contact the Inertial Labs
TM
support to request a file with the
required profile for post processing. This file have extension .DefOpt and
should be placed to the "User" folder which is located in the directory with
the NovAtel Waypoint Inertial Explorer installed. After that, the profile will
automatically appear in the NovAtel Waypoint Inertial Explorer.
