INS

GUI User’s Manual

Inertial Labs, Inc

Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.

Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com

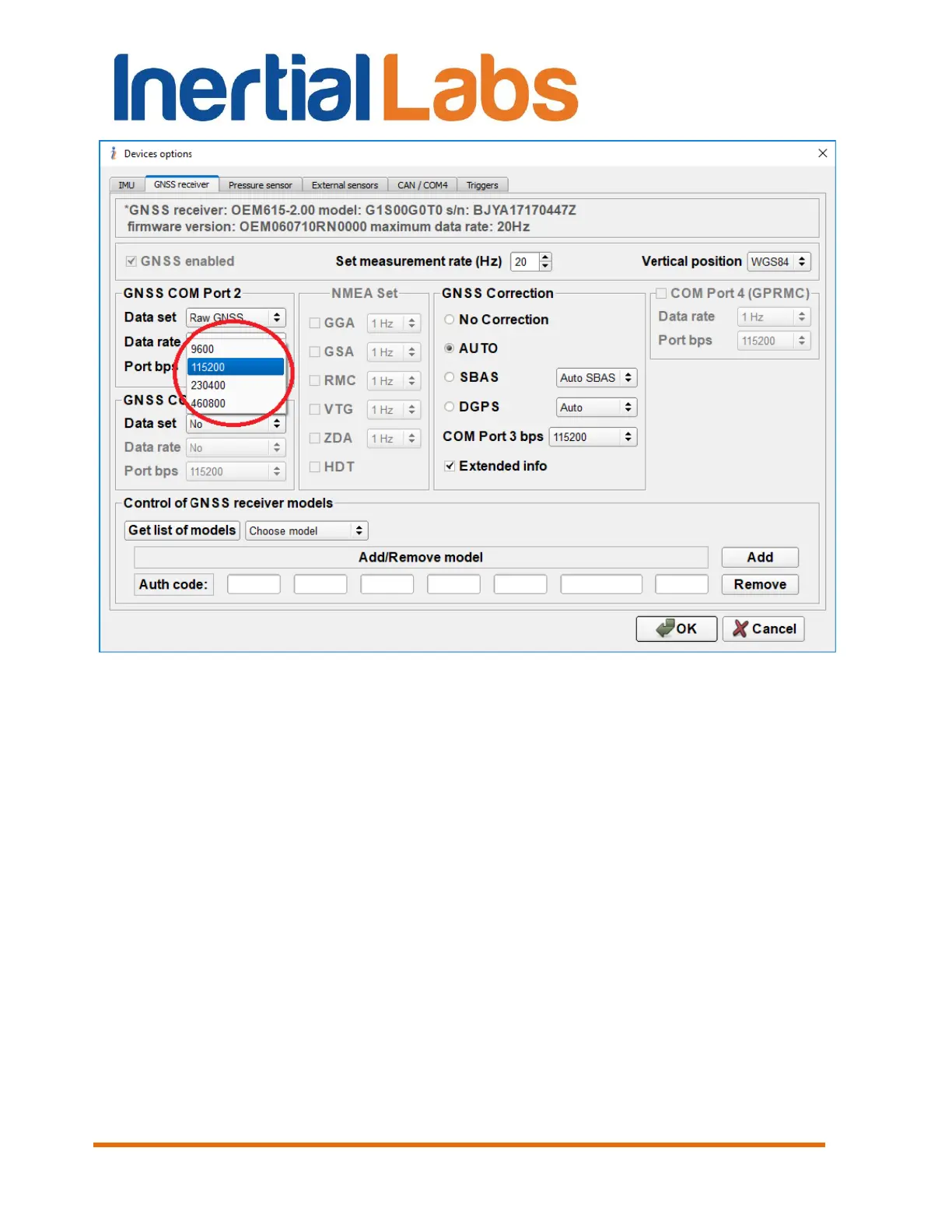

Fig. 4.7

– NMEA Set – allows setting desired NMEA messages for output

through COM2 port when NMEA Set is chosen in Data Set (see Fig.

4.8). By default INS outputs GPGGA, GPVTG and GPZDA if no

checkboxes in NMEA Set are chosen.

It is possible to set desirable frequency for each chosen NMEA

message. User can choose frequency of data output in drop-down list

next to the NMEA message name (see Fig. 4.9).
