Chapter 5: Console Operation
Fader Strips: User Pot Assignment
Eclipse User Guide 2.0 121/ 526
To assign a parameter:
1. Make sure that User mode is selected (press the Pot.
button beside the trackball to cycle through the options).
The green LED next to User should be illuminated.
2. On the Fader strip, press and hold down the pot you
wish to assign.

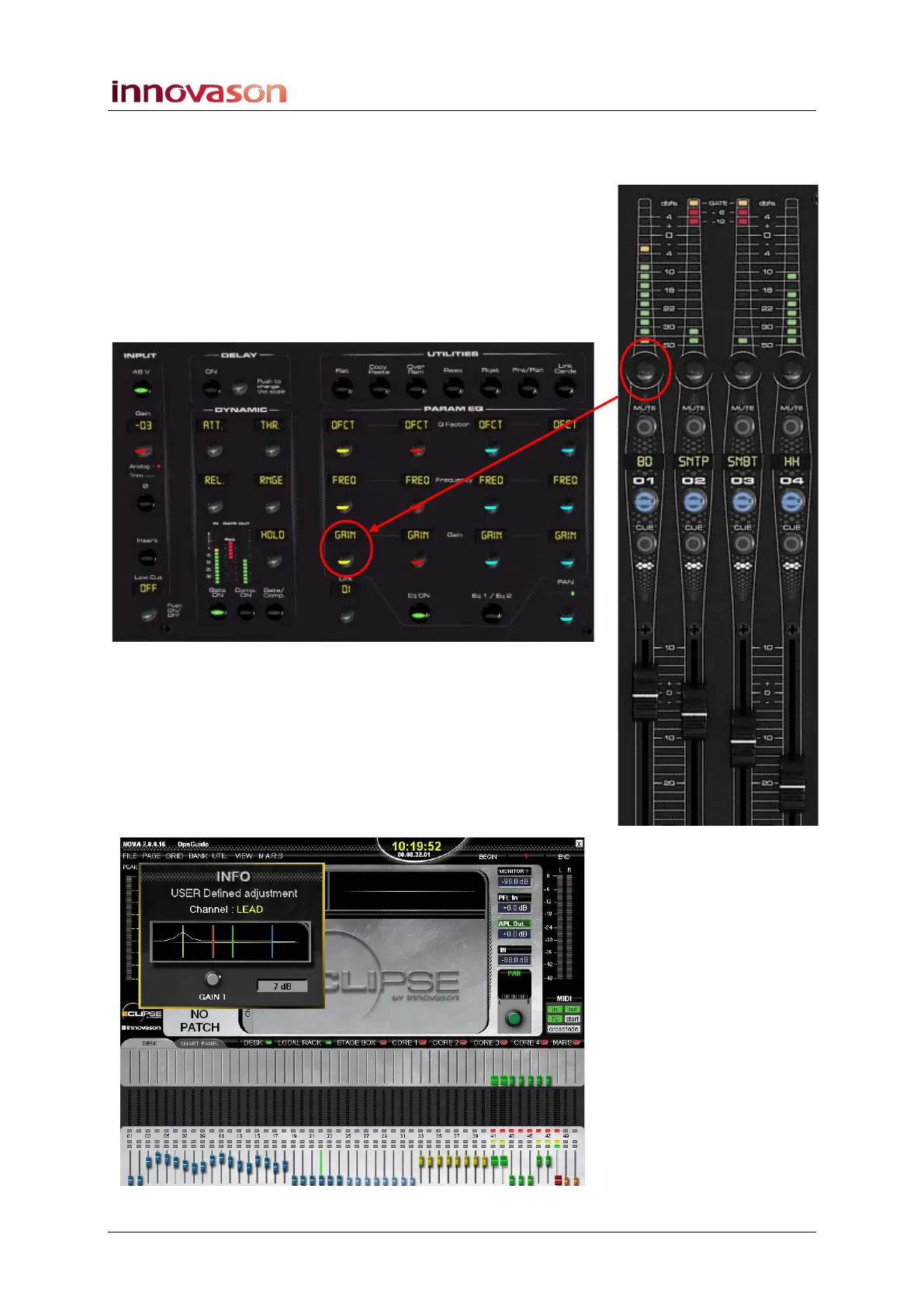

The available functions flash in the Label displays on the
Eclipse front panel:
3. Keep holding down the pot, and press down on one of
the flashing controls – e.g. EQ Band 1 GAIN.
The Fader strip pot is assigned to the selected function.
4. Test the assignment by turning the pot on the Fader
strip.
An INFO pop-up appears showing the name of the parameter
you are controlling:
