Chapter 5: Console Operation
Mix Bus Sends: Controlling Independent Panning
Eclipse User Guide 2.0 169/ 526
Controlling Independent Panning
Having made a send independent of the main channel pan, you
can adjust its pan position as follows:

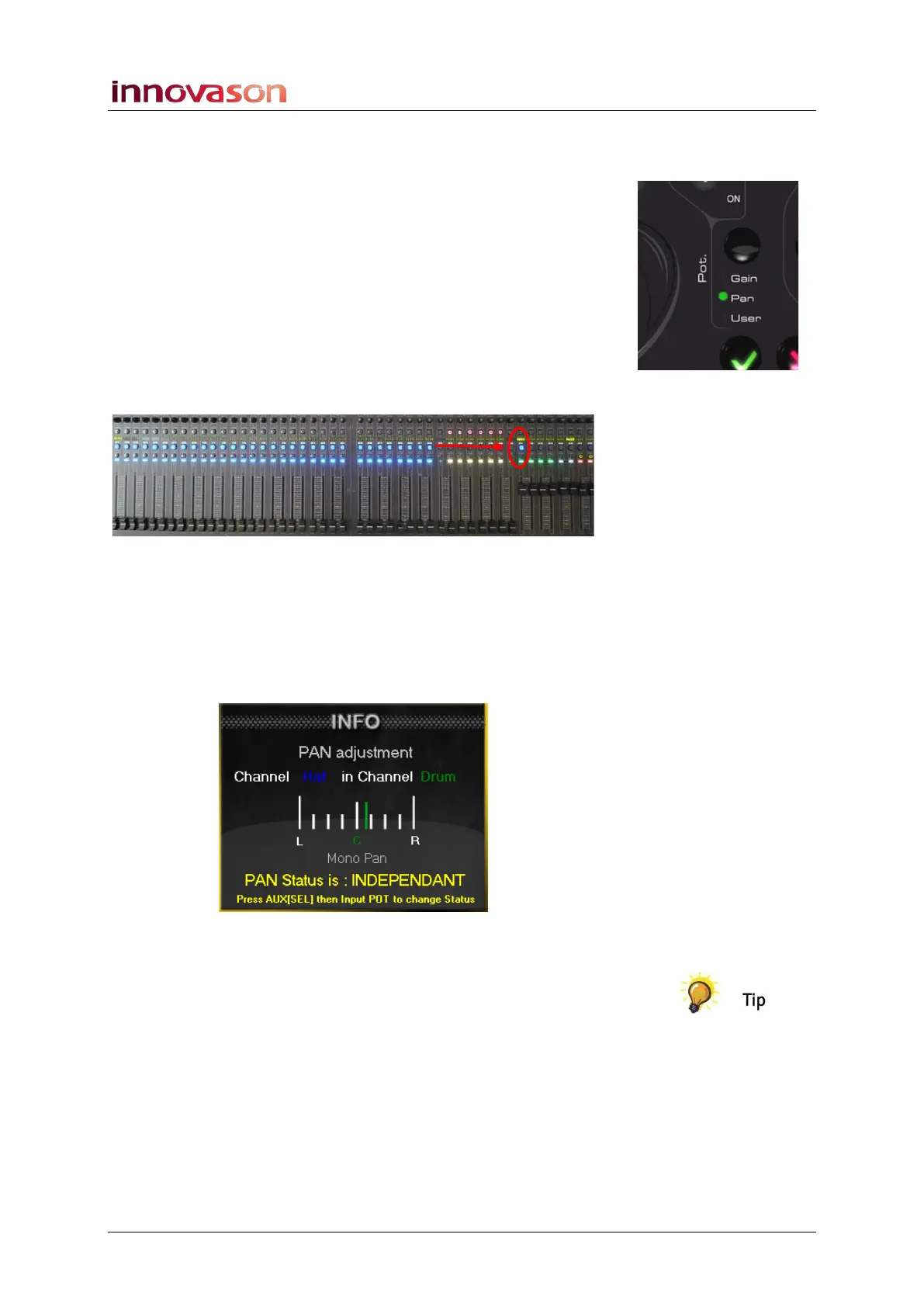

1. Switch the Fader strip pots to Pan mode using the Pot.
selector button.
The green LED next to Pan should be illuminated.
2. Press SEL on your stereo Aux channel so that the input
faders feeding the Aux switch into “Aux send” mode:
The steady state SEL buttons indicate bus assignments to the
selected Aux - in our example, a range of input channels are
assigned to the Aux:
If you move your input faders, you should be adjusting the Aux
send levels.
3. Now turn the pot on one of the input faders feeding the
Aux to adjust the independent pan position:
Panning from the input to the selected Aux is adjusted. The
main channel pan and other stereo aux sends are unaffected.
Note that you change between independent and dependent
panning by pressing down on the pot.
The INFO window updates accordingly.
You can set separate pan positions to multiple bus sends as
long as each one is configured to be Independent of the main
channel pan.
