Chapter 5: Console Operation
Mix Bus Sends: Matrix Sends
Eclipse User Guide 2.0 171/ 526
Adjusting Matrix Send Levels
Like Auxes, Matrix assignments have a separate send level.

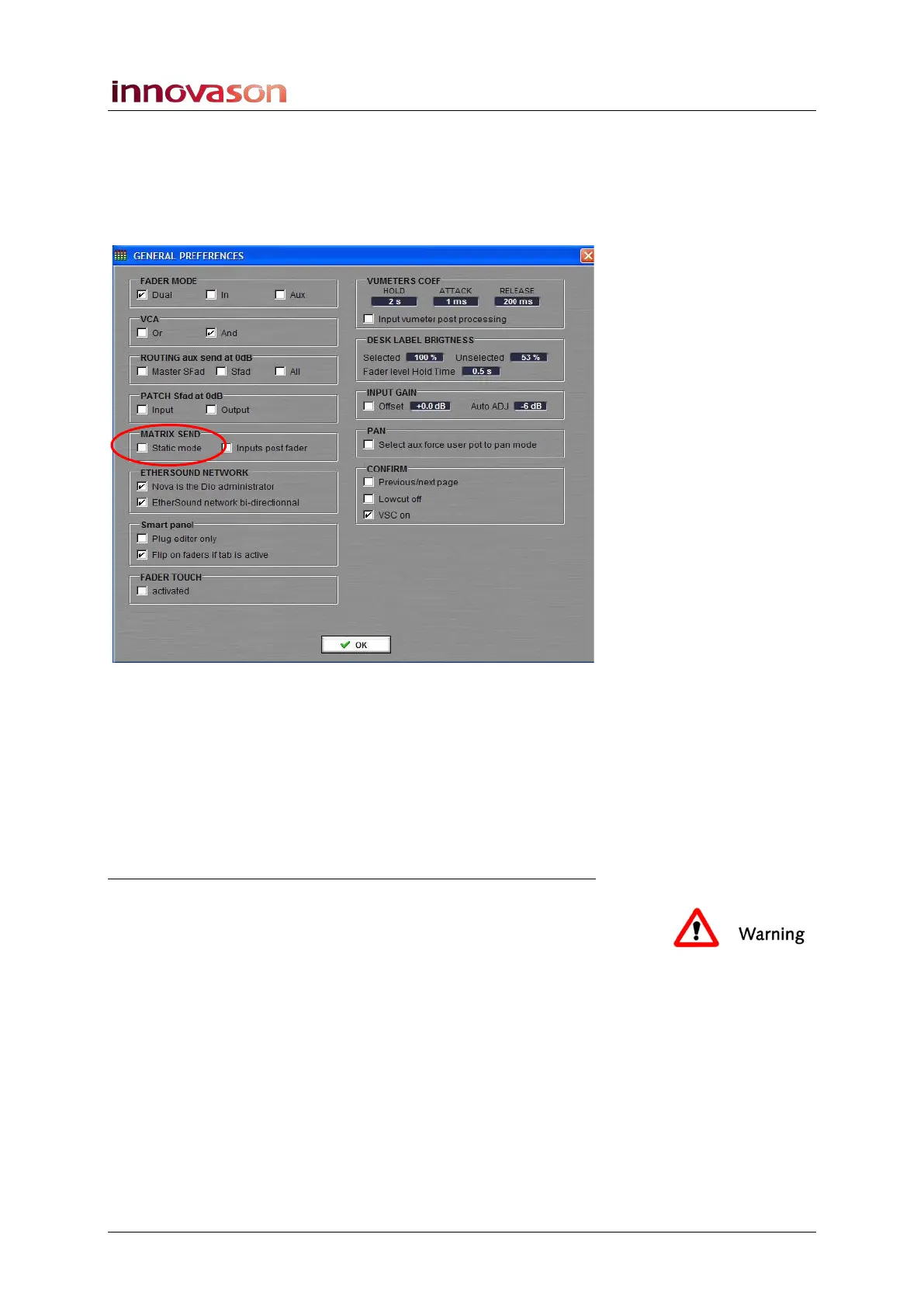

From the General Preferences window, you can determine
how these send levels may be adjusted:
• Static mode off – the channel send level can only be
adjusted when you press and hold the SEL button on
the Matrix, see below for further details.
• Static mode on – this mode works in the same way as
Aux sends. When you select a Matrix, all input, Group,
Aux and Master faders become the send levels to the
matrix.
Warning
If you work with Static Mode on, then you must remember that
if a Matrix SEL button is pressed, your Master (and input, Aux,
Group) faders are NOT adjusting their Master levels, but are
adjusting the Matrix send level.
For this reason, we recommend Static mode off which works
as follows:
