Chapter 6: Console Configuration
Inserts
316/ 526 2.0 Eclipse User Guide
Inserting Mono and Stereo Effects Bays
When inserting effects bays, please note the following:
• If you insert an effects bay on a stereo channel, then
you are automatically asked if you wish to link the bay
for stereo operation.
• To use a stereo effect on a mono source - for example
to apply stereo chorus to a guitar - split the source to
two input channels, pan the channels left and right to the
mix, and assign the left insert to the left channel and
right insert to the right channel. This example is
illustrated below:

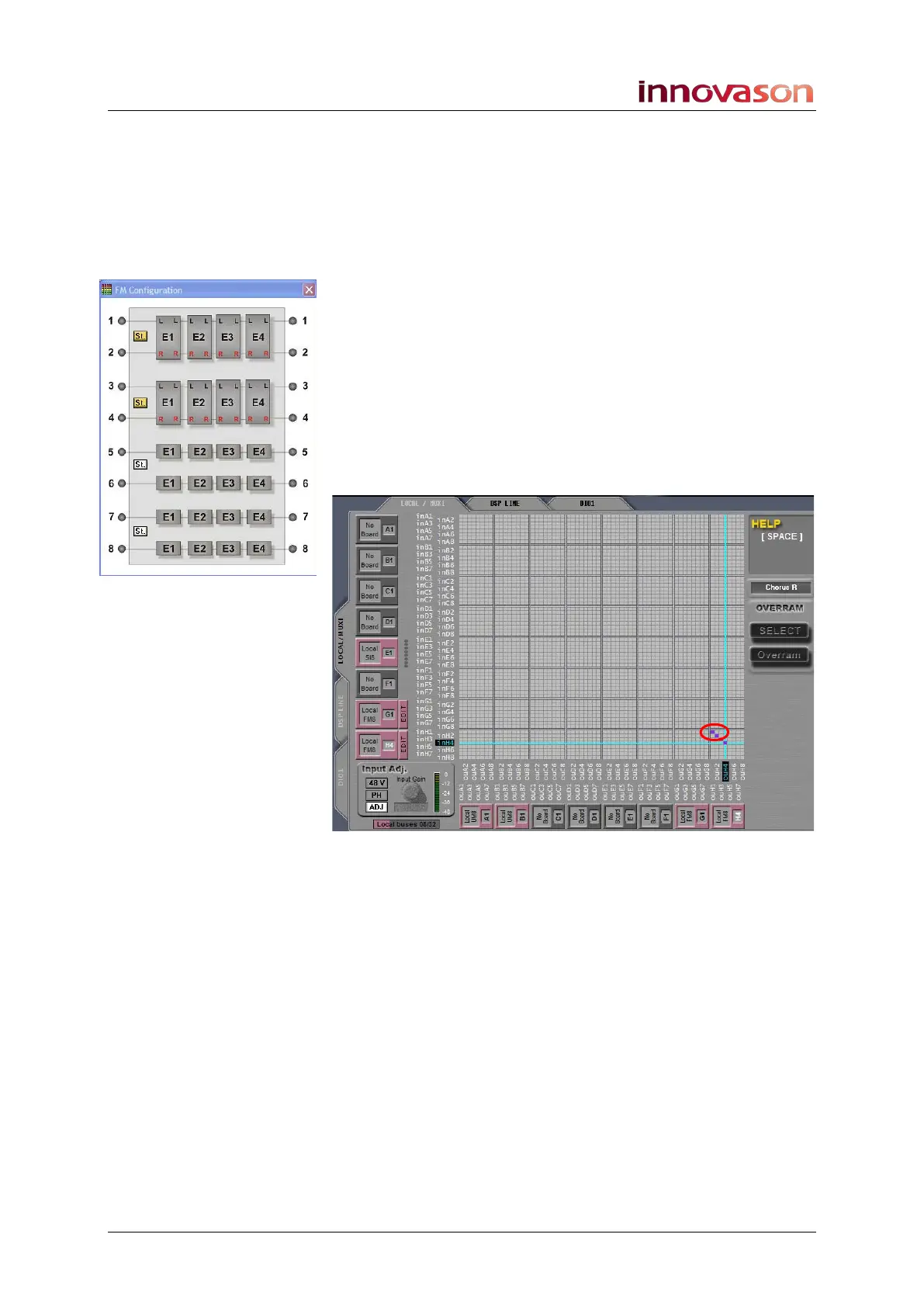

1. Configure the stereo effects bay to be used for the
Chorus.
2. From the PATCH DIRECT grid define two inserts, one
for Chorus Left and one for Chorus Right:
