Chapter 2: Installation
The Standard Eclipse Package
Eclipse User Guide 2.0 39/ 526
I/O Cards

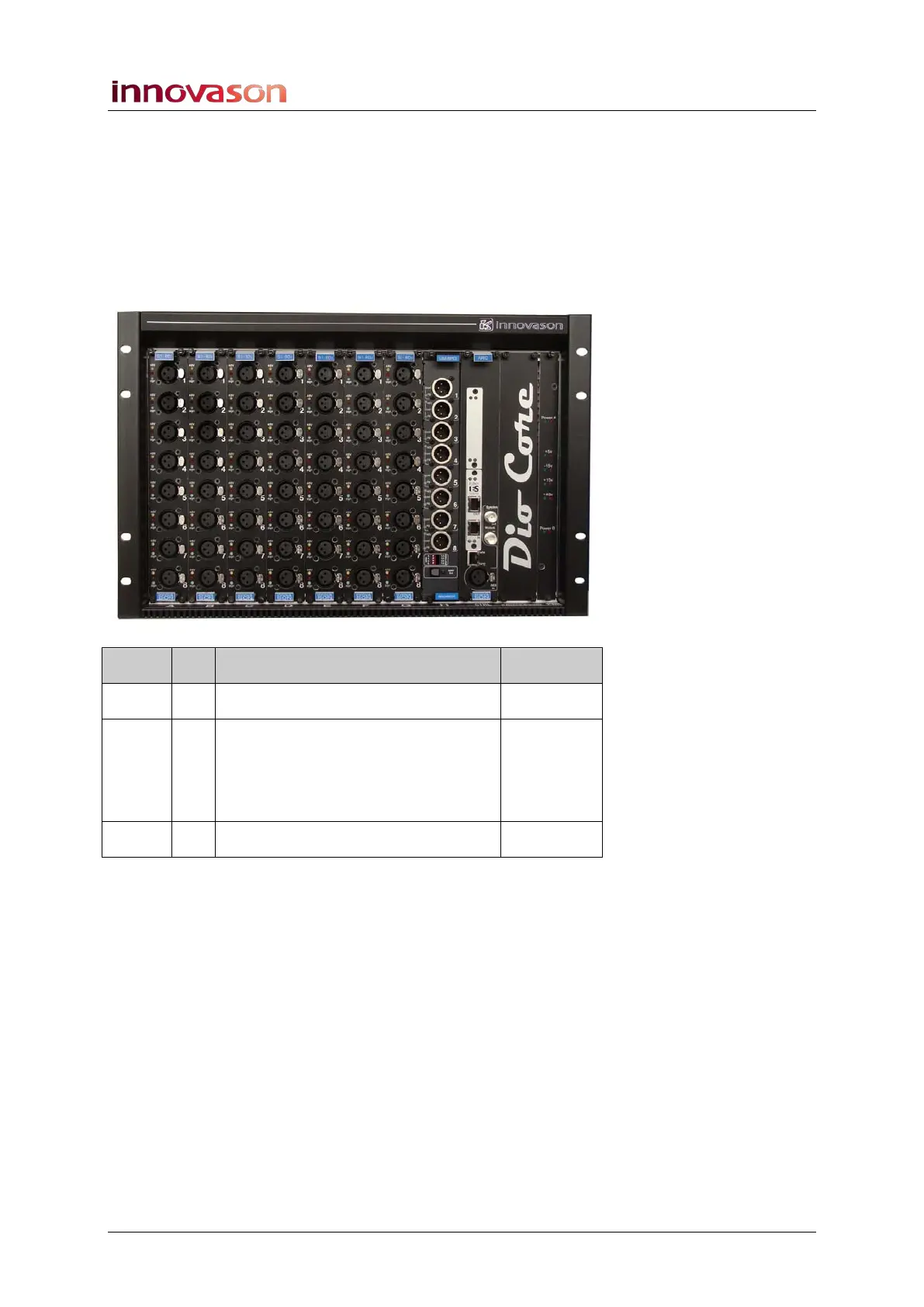

The DioCore provides eight I/O card slots which may be fitted
with any combination of I/O cards (the FX card is not managed
by the DioCore). See Page 19 for an overview of the available
options.
The standard package is delivered with a full complement of
cards as follows:
Card No. I/O Connector
SI-8D3
7 56 Mic/Line balanced inputs XLR
UM-
8PO
1 8 balanced outputs with DSP processing
and adjustable max level.
Each pair is switchable to AES;
all 16 outputs available on ADAT
XLR
XLR
TOSLink
ARC
1 Ethersound interface (64-channels) CAT5
