Appendices
Appendix A: The Standard Template
Eclipse User Guide 2.0 509/ 526

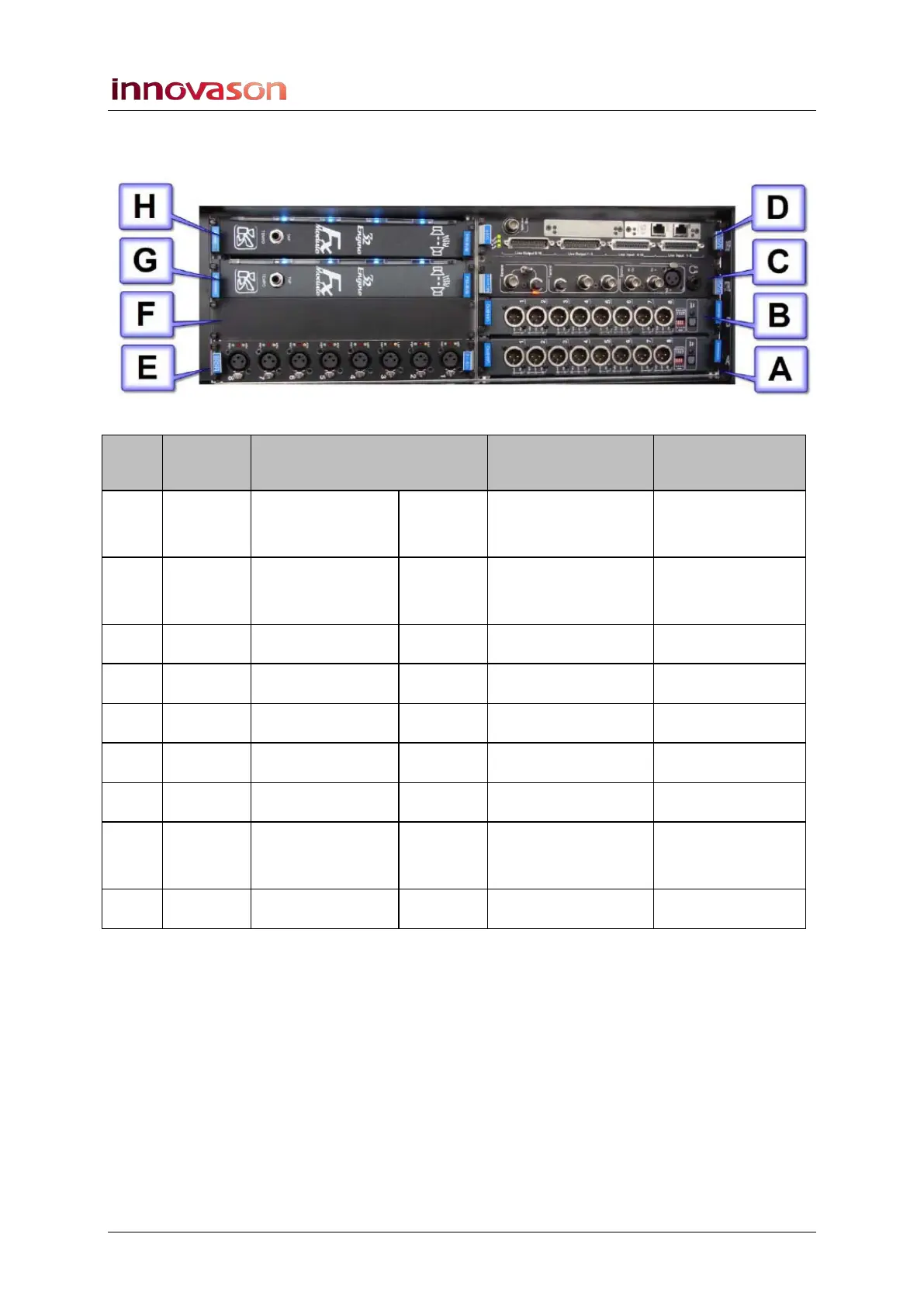

Console (Rear Panel) Audio Connections:
Slot I/O Card Physical Connection PATCH Grid
Assignments
Control Surface
Assignments
A UM-8PO Outputs 1-2
Outputs 3-8
XLR or
TOSLink
Master Left/Right
Matrix 1-6
Faders 47/48
Smart Panel Bank D
B UM-8PO Outputs 1-6
Outputs 7-8
XLR or
TOSLink
Matrix 7-12
Monitor Left/Right
Smart Panel Bank D
TB/Mon Panel 01
D DSP Line Outputs 1-8 DSub25 Ext insert sends 1-8 Assigned as inserts
D DSP Line Inputs 1-8 DSub25 Ext insert returns 1-8 Assigned as inserts
D DSP Line Inputs 9-16 DSub25 Spare n/a
D DSP Line Outputs 9-16 DSub25 Spare n/a
E SI-8D3 Mic/Line Inputs 1-8 XLR Local Inputs 1-8 Smart Panel Bank B
G FM-8VB Internal Effects 1-8 n/a Stereo FX 1-4 Sends
Stereo FX 1-4 Returns
Smart Panel Bank A
H FM-8VB Internal Effects 9-16 n/a Mono FX 1-8 (Inserts) Assigned as inserts
