Appendices
Appendix A: The Standard Template
510/ 526 2.0 Eclipse User Guide

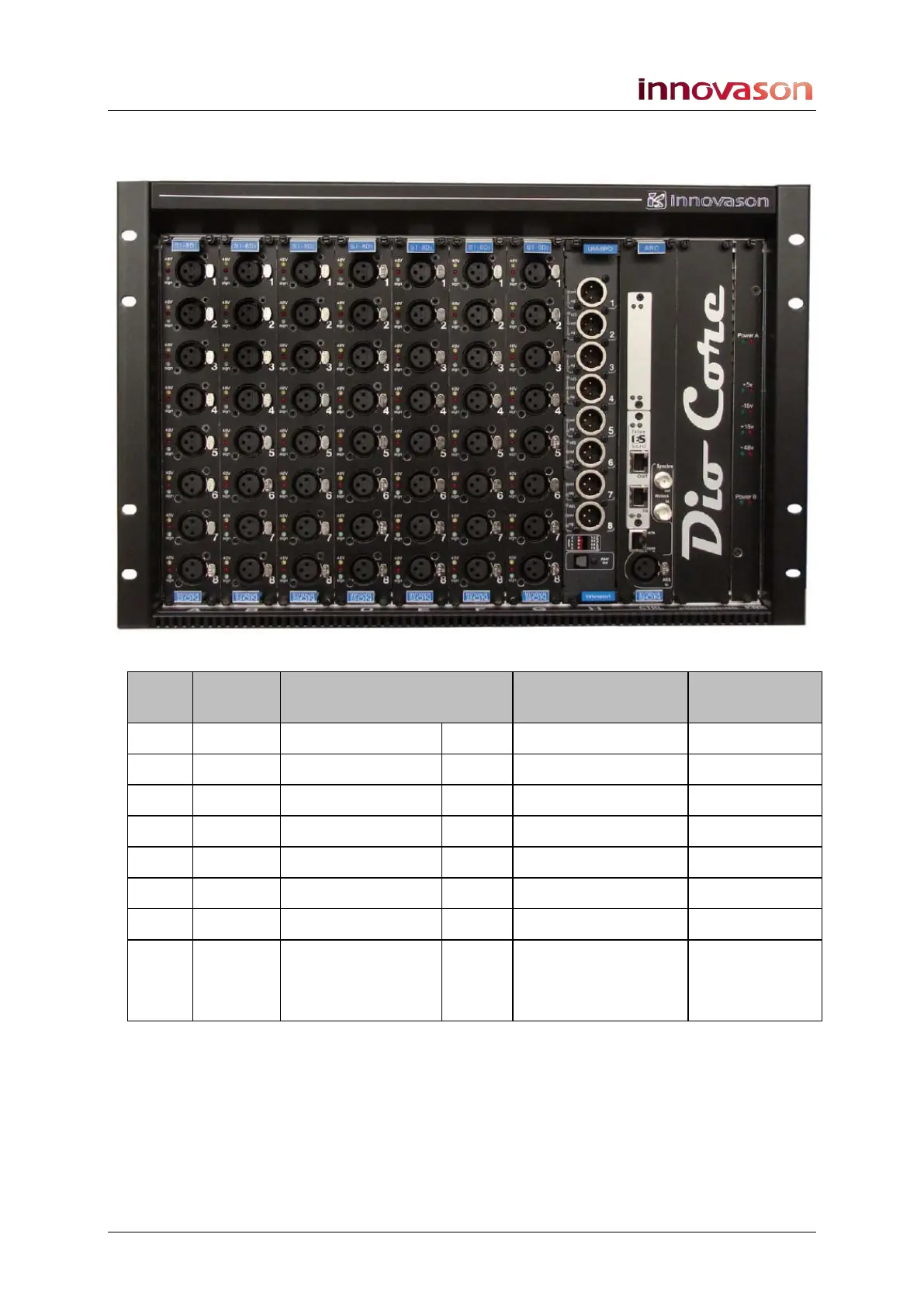

DioCore Audio Connections:
Slot I/O Card Physical Connection PATCH Grid
Assignments
Control Surface
Assignments
A SI-8D3 Mic/Line Inputs 1-8 XLR Ethersound Inputs 1-8 Faders 1-8
B SI-8D3 Mic/Line Inputs 1-8 XLR Ethersound Inputs 9-12 Faders 9-12
C SI-8D3 Mic/Line Inputs 1-8 XLR Ethersound Inputs 13-24 Faders 13-24
D SI-8D3 Mic/Line Inputs 1-8 XLR Ethersound Inputs 25-32 Faders 25-32
E SI-8D3 Mic/Line Inputs 1-8 XLR Spare n/a
F SI-8D3 Mic/Line Inputs 1-8 XLR Spare n/a
G SI-8D3 Mic/Line Inputs 1-8 XLR Spare n/a
H UM-8PO Line/AES/ADAT
Outputs 1-2
Outputs 3-8
XLR or
TOSLink
Stereo Aux 1-4 Faders 41-44
(Aux L/R deployed
to Faders 45&46)
