4 Interface X30
5 Pin 1

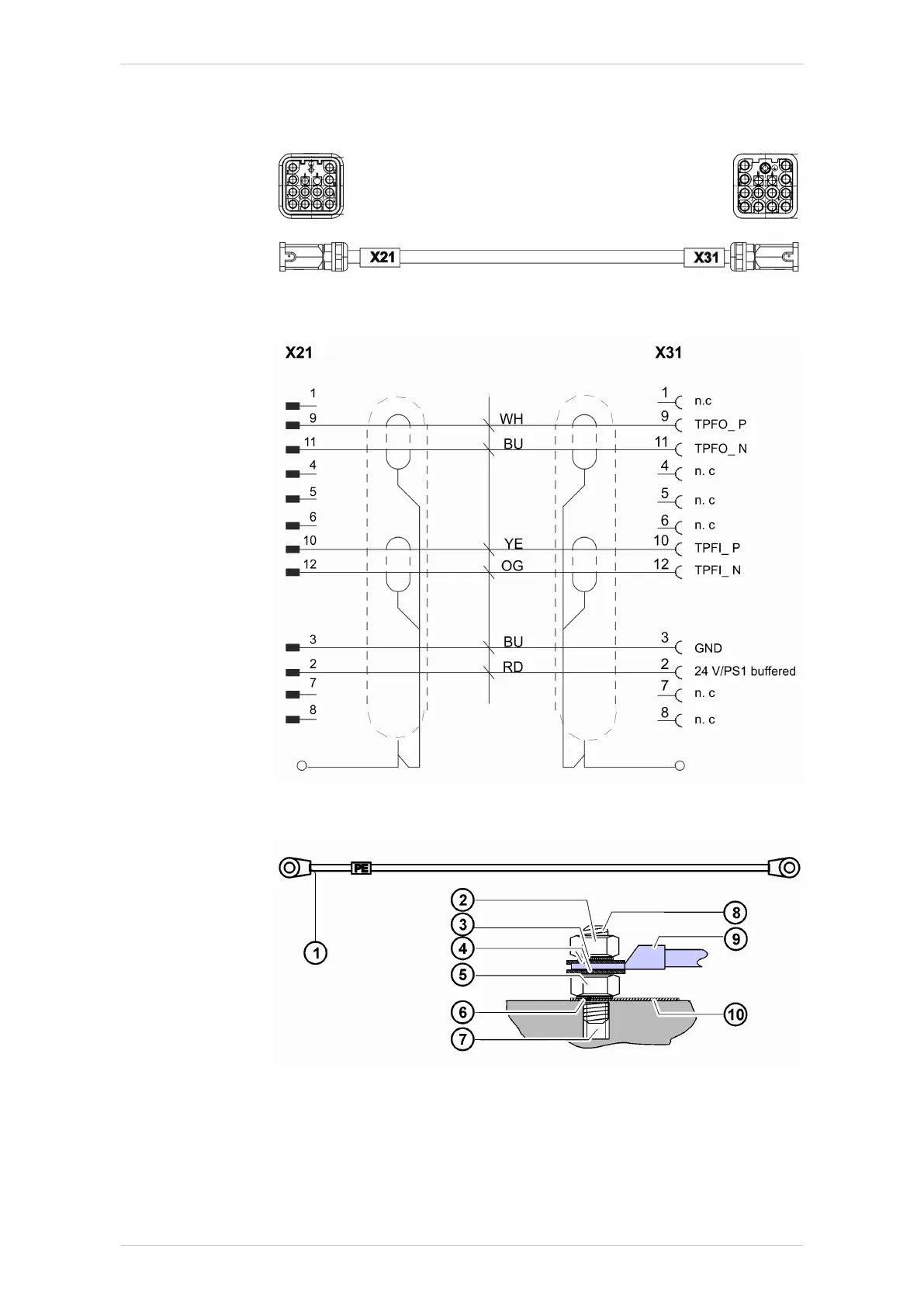

Fig. 7-12: Connecting cable, data cable X21 - X31
Fig. 7-13: Connecting cable, wiring diagram, data cable X21 - X31
Fig. 7-14: Connecting cable, ground conductor
1 Ground conductor 6 Conical spring washer
2 Hexagon nut 7 Robot
3 Conical spring washer 8 Setscrew, M8
KR IONTEC
186/344 | www.kuka.com MA KR IONTEC V4 | Issued: 11.05.2021
Start-up and recommissioning

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kuka IONTEC KR 20 R3100 and is the answer not in the manual?

Kuka IONTEC KR 20 R3100 Specifications

General IconGeneral
Payload20 kg
Reach3100 mm
Repeatability±0.06 mm
Number of Axes6
ControllerKR C4
Protection RatingIP65
Mounting PositionFloor, ceiling, wall
