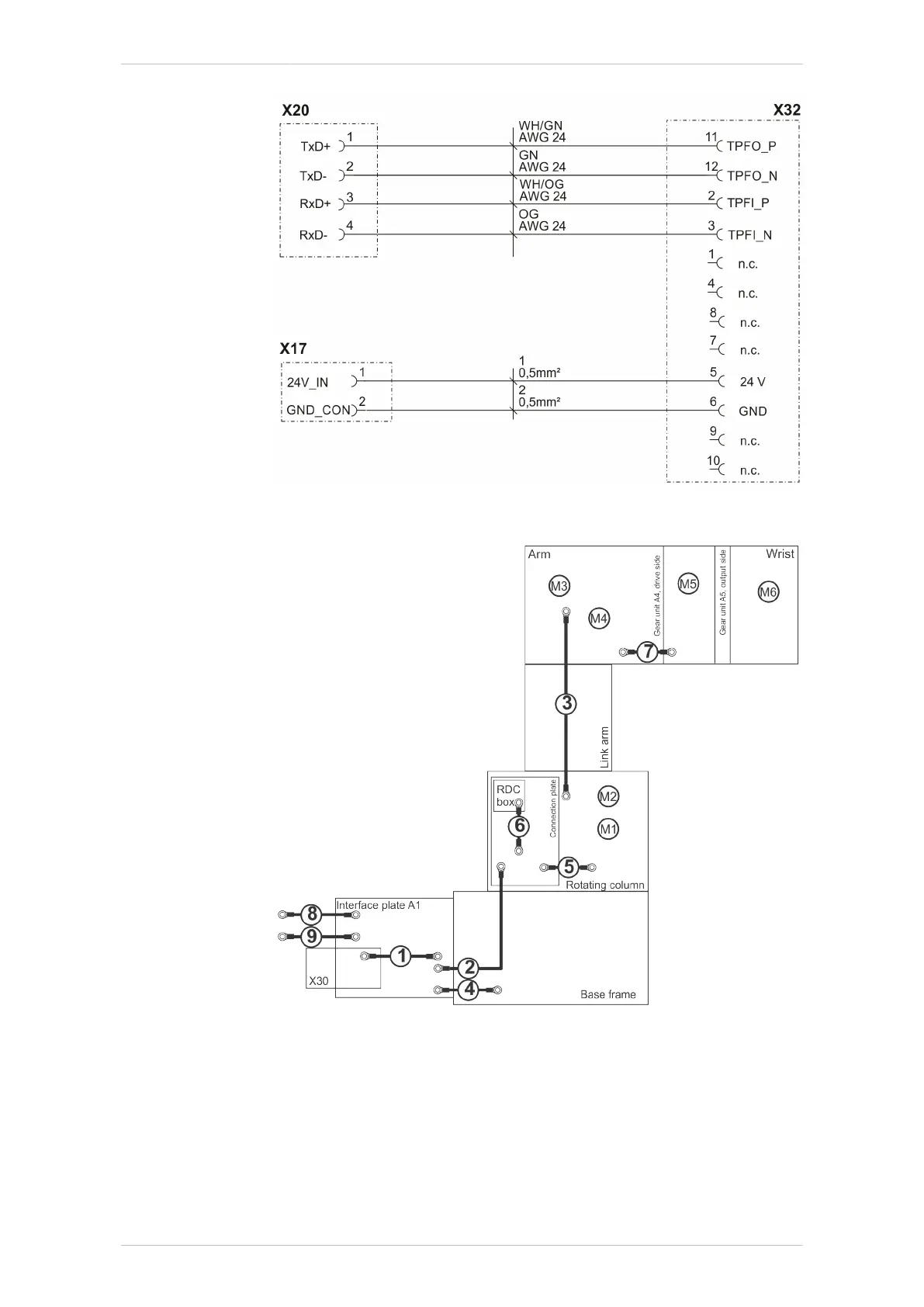

Fig. 9-66: Wiring diagram, RDC X32
Fig. 9-67: Wiring diagram, protective circuit, KR 20 R3100
1 Ground conductor, interface plate A1 – holding plate
Cross-section: 4 mm
2
2 Ground conductor, interface plate – connection plate and RDC box
Cross-section: 4 mm
2
3 Ground conductor, rotating column – arm
Cross-section: 4 mm
2
KR IONTEC
MA KR IONTEC V4 | Issued: 11.05.2021 www.kuka.com | 307/344
