6. Remove five screws.
7. Unhook two hooks and then remove the
controller box.

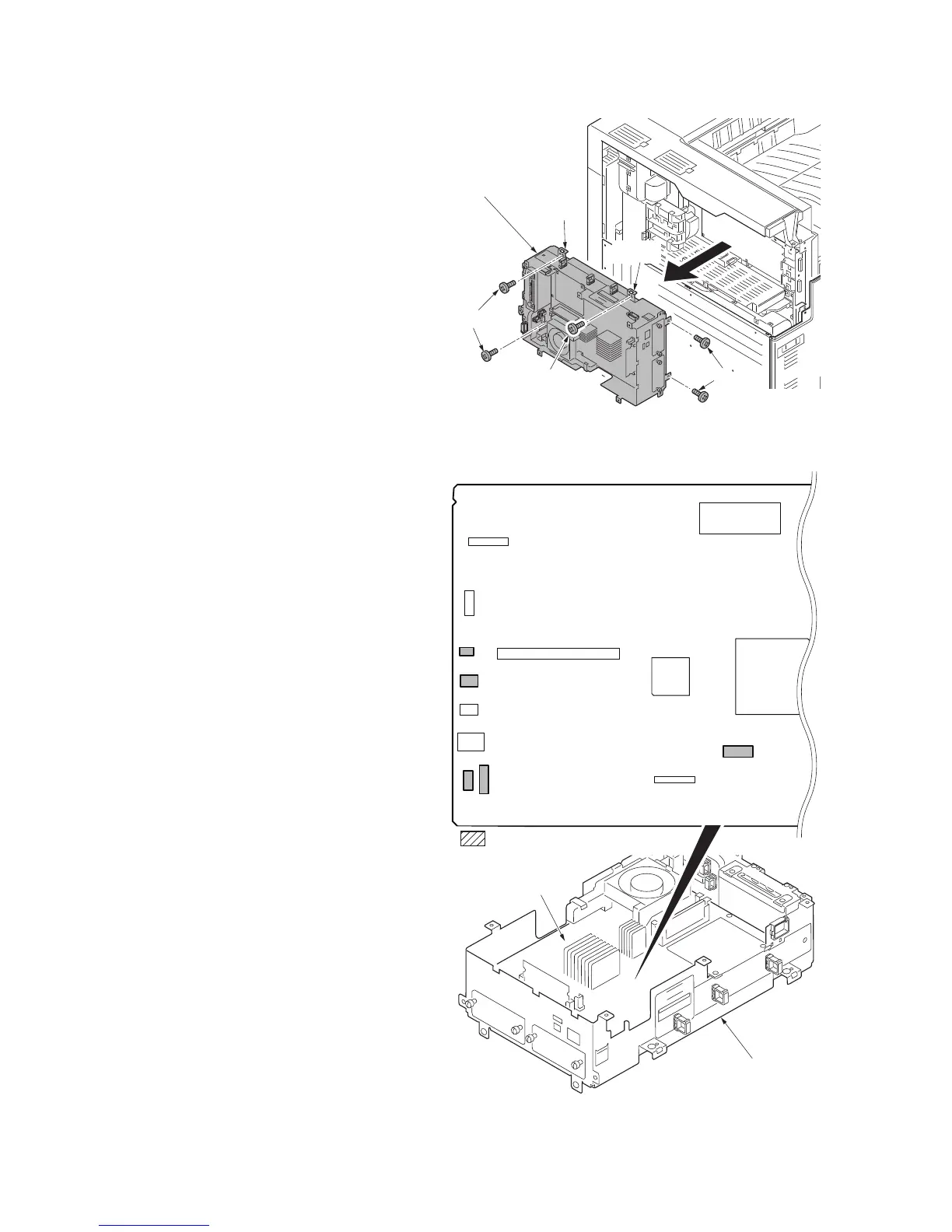

Figure 1-5-68
8. Remove the following connectors that
connected to the main PWB.
YC23
YC27
YC8 (FFC connector with a lock)
YC9
YC1 [BLACK] (with a lock)
*: When removing the FFC from the FFC
connector with a lock, remove the FFC
after released by lifting down the lock
lever (see page 1-5-45)
Figure 1-5-69
Controller box
Screws
Hook
Hook
Screws
Screw
YC12
YC7
YC23
YS4
YC27
YC32
YC24
YC8
YC9
YC3
YC1
YC16
1
2
12
13
1
2
11 12
1
3
1
3
1
3
8 2
1
7
1
15
1
6
U1
U6
1
40
48
41
7
1
25
26
1
50
FFC connector with a lock
Main PWB
Main PWB
Controller box
