14. Connect the relaying USB wire to the
USB wire of the IC card reader.
15. Insert the connector of the relaying USB
wire to the main PWB.
16. Fix the USB wire of the IC card reader
using ten wire saddles and two wire
holders.

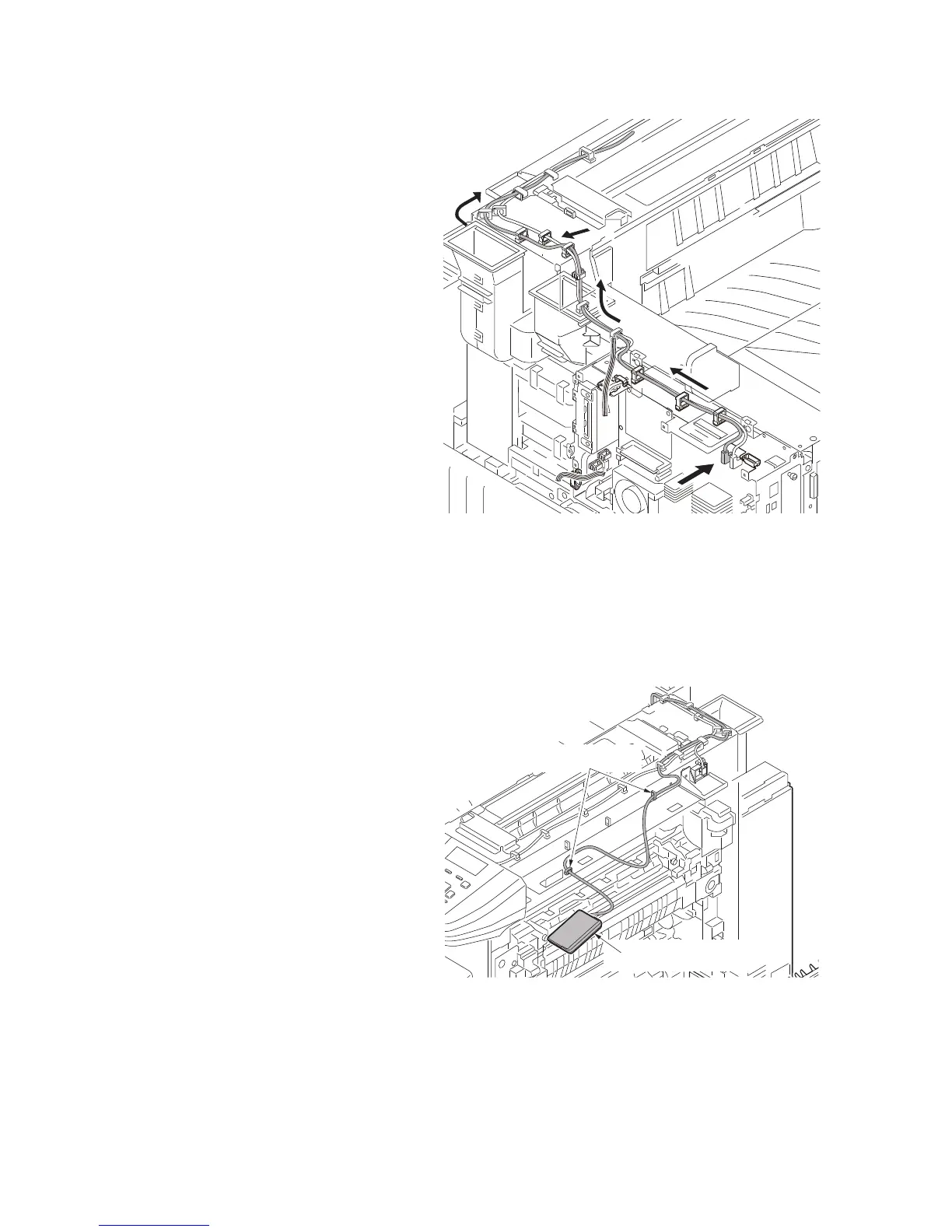

Figure 1-2-44
17. Pass the USB wire of the IC card reader
through two clamps and then fasten the
wire.
Figure 1-2-45
Clamps
IC card reader
To Next Page
