2MN/2N1
1-2-34

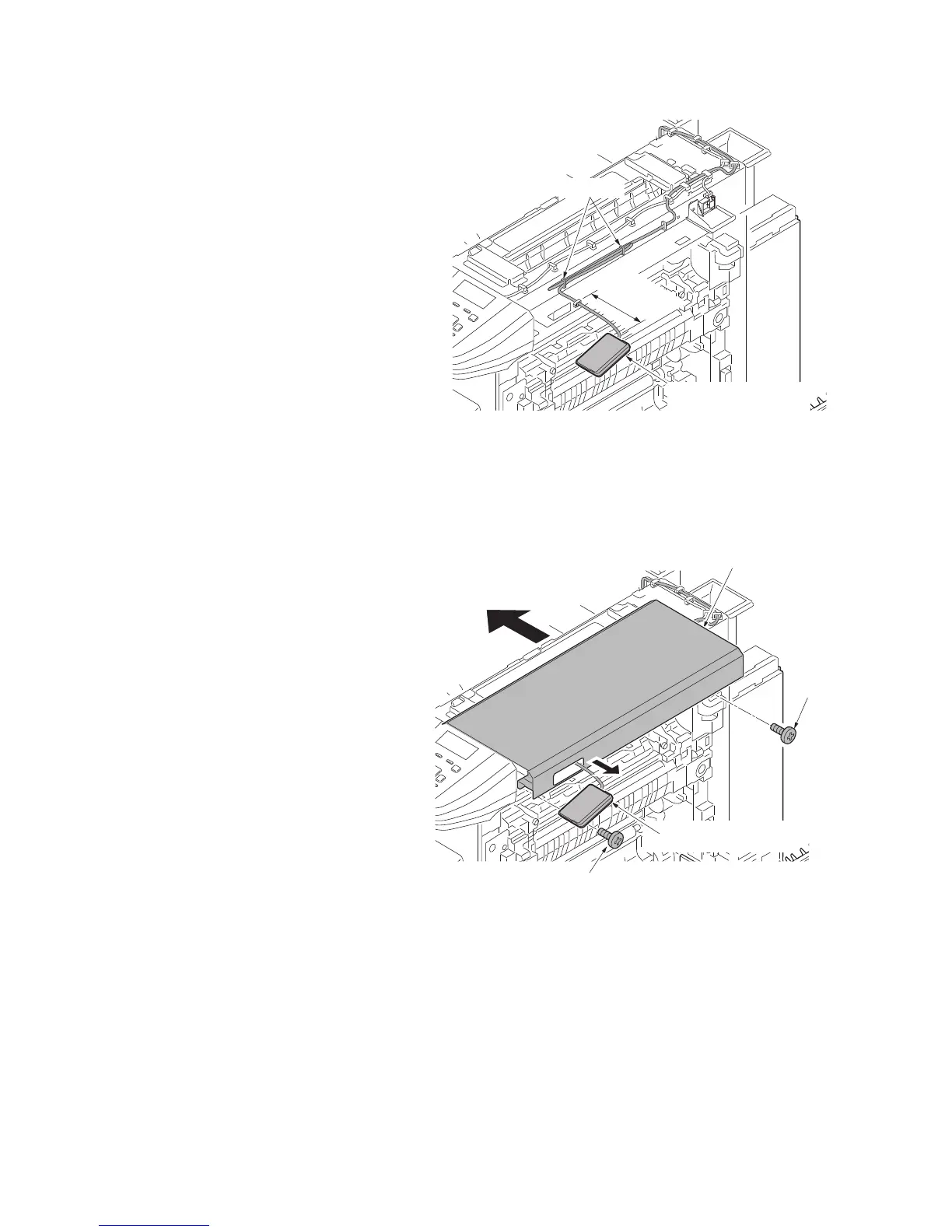

18. .Fix the wirings of extra portion using
two clamps so that the distance of the
USB power line from the clamp to the
IC card reader is approximately
160mm.
Figure 1-2-46
19. Route the IC card reader through the
opening in the upper right cover and fix
the upper right cover using the two
screws.
Figure 1-2-47
Clamps
160 mm
IC card reader
Upper right
cover
Screw
Screw
IC card reader
To Next Page
