2MN/2N1
1-2-35
20. Remove the pin of the card reader base
and then remove the card reader
mount.

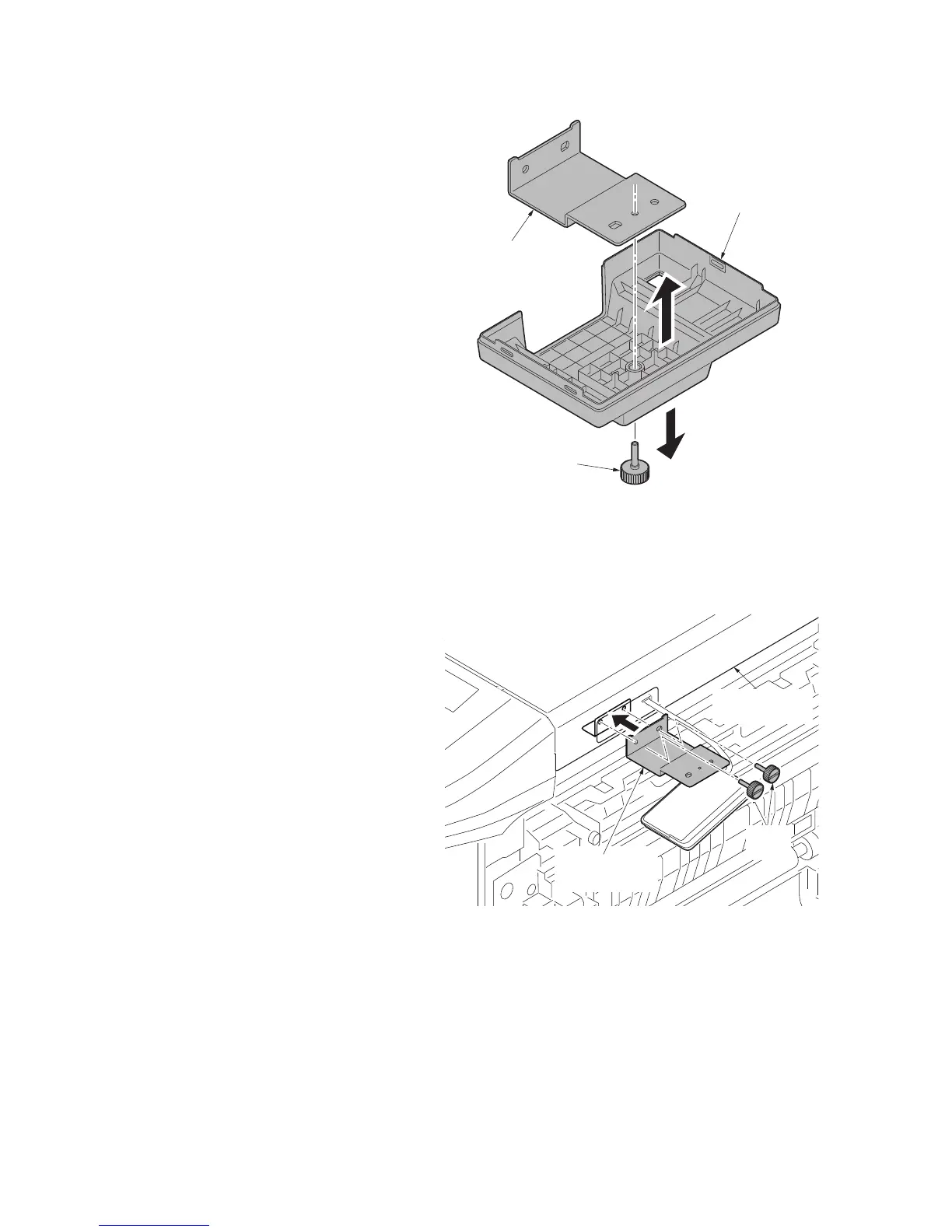

Figure 1-2-48
21. Fit the card reader mount to the
machine using two pins.
Figure 1-2-49
Card reade
r
base
Pin
Card reader
mount
Card reader
mount
Pins
Right upper
cover
