2MN/2N1
1-2-36

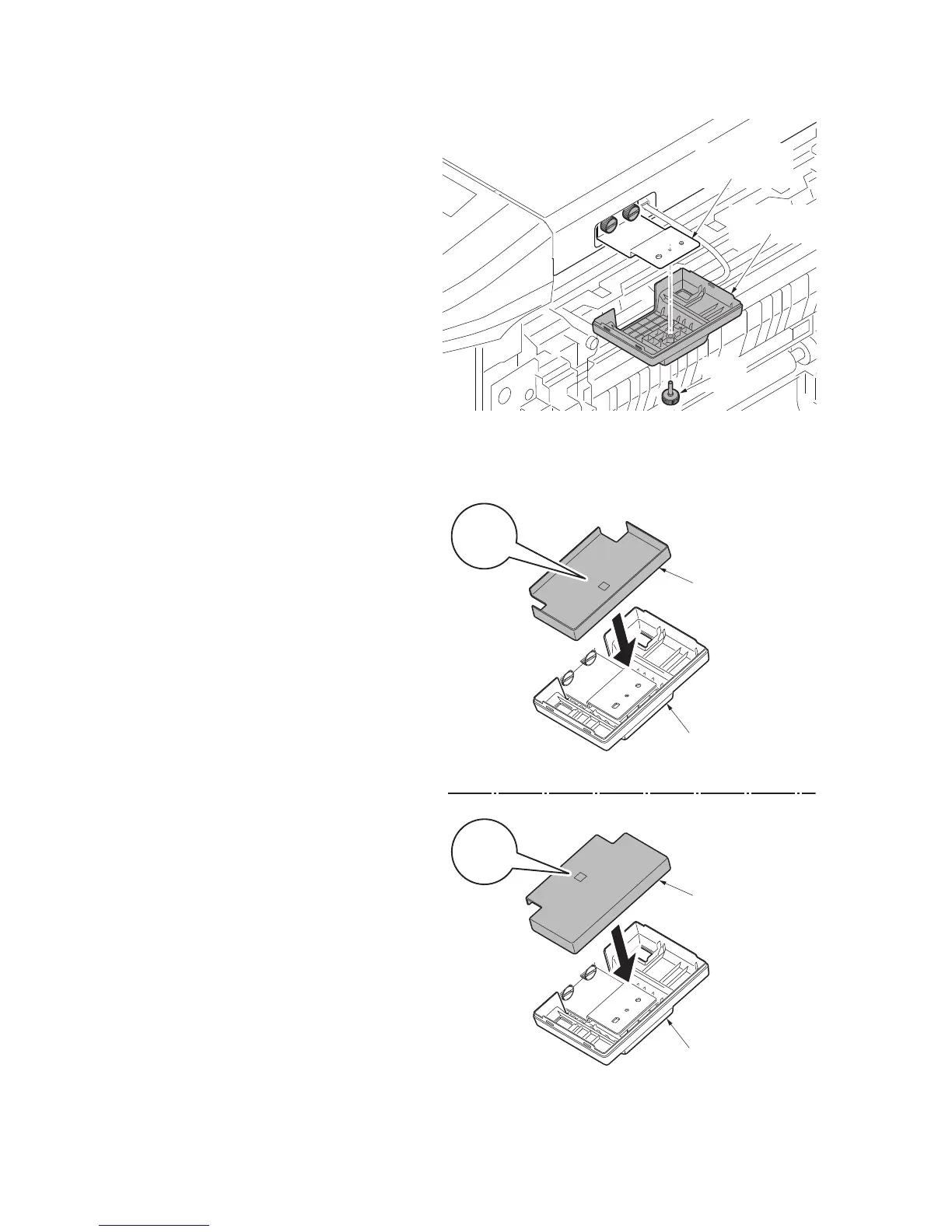

22. Refit the card reader base to card
reader mount using the pin removed in
step 20.
Figure 1-2-50
23. Fit the card reader tray to the card
reader base.
Choose the direction of mounting the IC
card reader according to the depth of
the reader.
10mm to 22mm: Face the mark A
upwards.
Less than 10mm: Face the mark B
upwards.
Figure 1-2-51
Pin
Card reader
mount
Card reader
base
A
A
B
B
Card reader
tray
Card reader
tray
Card reader
base
Card reader
base
To Next Page
