2MN/2N1
1-2-37
24. Mount the IC card reader on the card
reader base.

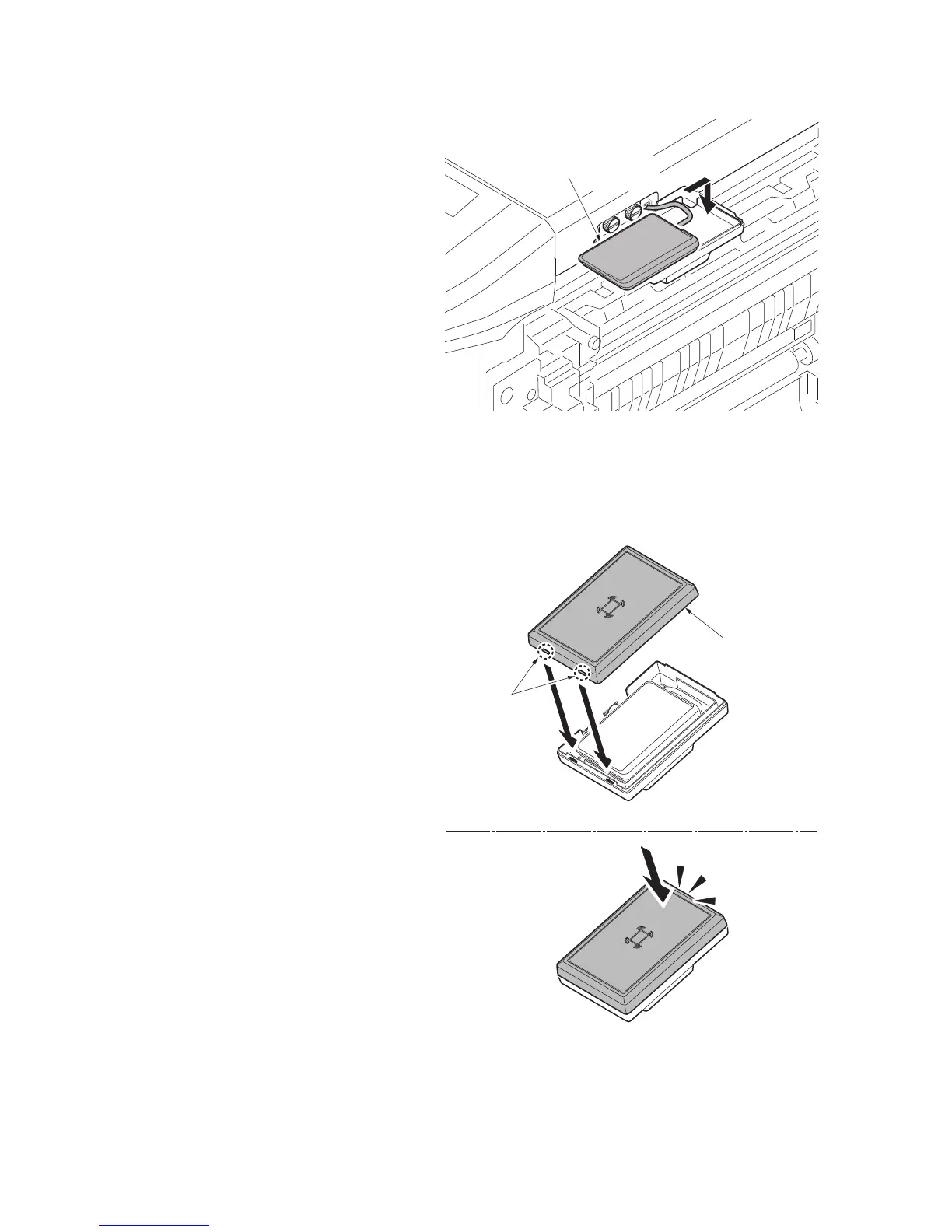

Figure 1-2-52
25. Hook the two hooks of the card reader
case to fit the card reader case to the
card reader base.
Press its top until it clicks in.
Figure 1-2-53
26. Replace the cover which was removed.
IC card reader
A
A
Hooks
Card reader
case
