Leica Captivate - Ms60;Ts60

C.9 MS60/TS60
008364_001
a
b
g
h
f
e
d
c
a Pin 1
b
Pin 2
c
Pin 3
d Pin 4
e Pin 5
f Pin 6
g Pin 7
h Pin 8
1
7
6
8
5
4
3
2
PIN_001
Pin Signal
Name
F
unction Direction
1 USB_D+ USB data line In or out
2 USB_D- USB data line In or out
3 GND Signal ground -
4 RxD RS232, receive data In
5 TxD RS232, transmit data Out
6 ID Identification pin In or out
7 PWR Power input, nominal +12 V (11 V - 16 V) In
8 NC Not connected -

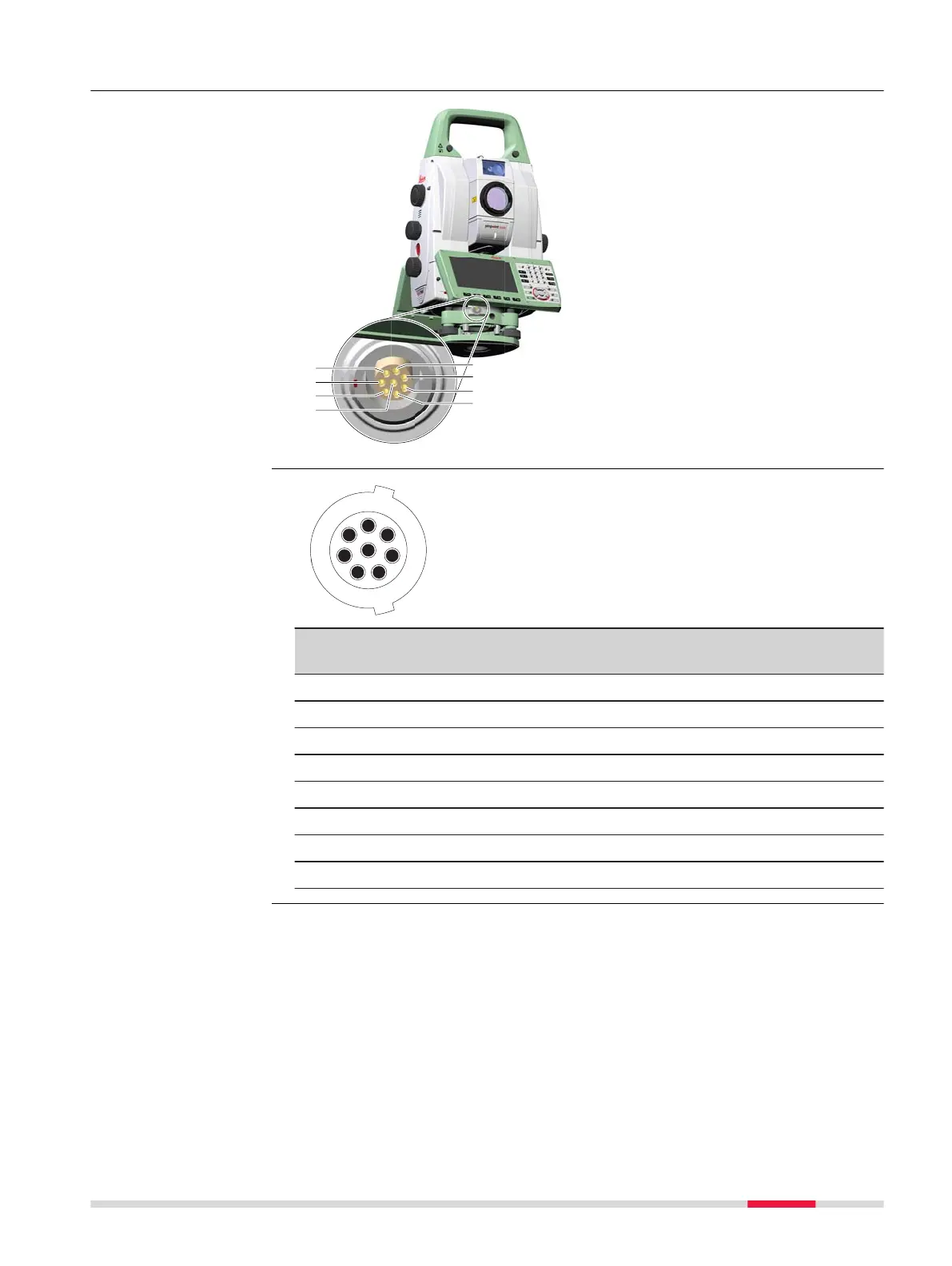

Ports at the MS60/
TS60 instrum
ent
Pin assignments for
8 pin LEM
O-1
Pin Assignments 1007
