Field Description
CL offset
ro
tated
Perpendicular horizontal offset from the current position to
the centreline, along the X-axis of the rotated tunnel profile
Centreline
height diff
rotated
Height difference from the current position to the centreline
along the Y-axis of the rotated tunnel profile.
Go forward/
backward
Distance to point. Available for staking.
For Navigational arrow types: In/out, left/right in 3D
viewer equivalent to:
Go left/right Distance to point. Available for staking.
Fo
r Navigational arrow types: In/out, left/right in 3D
viewer equivalent to:
Go Distance to point. Available for staking.
For Navigational arrow types: Direction & distance in 3D
viewer equivalent to:
Turn left/
righ
t
Direction to point. Available for staking.
For Navigational arrow types: Direction & distance in 3D
viewer equivalent to:

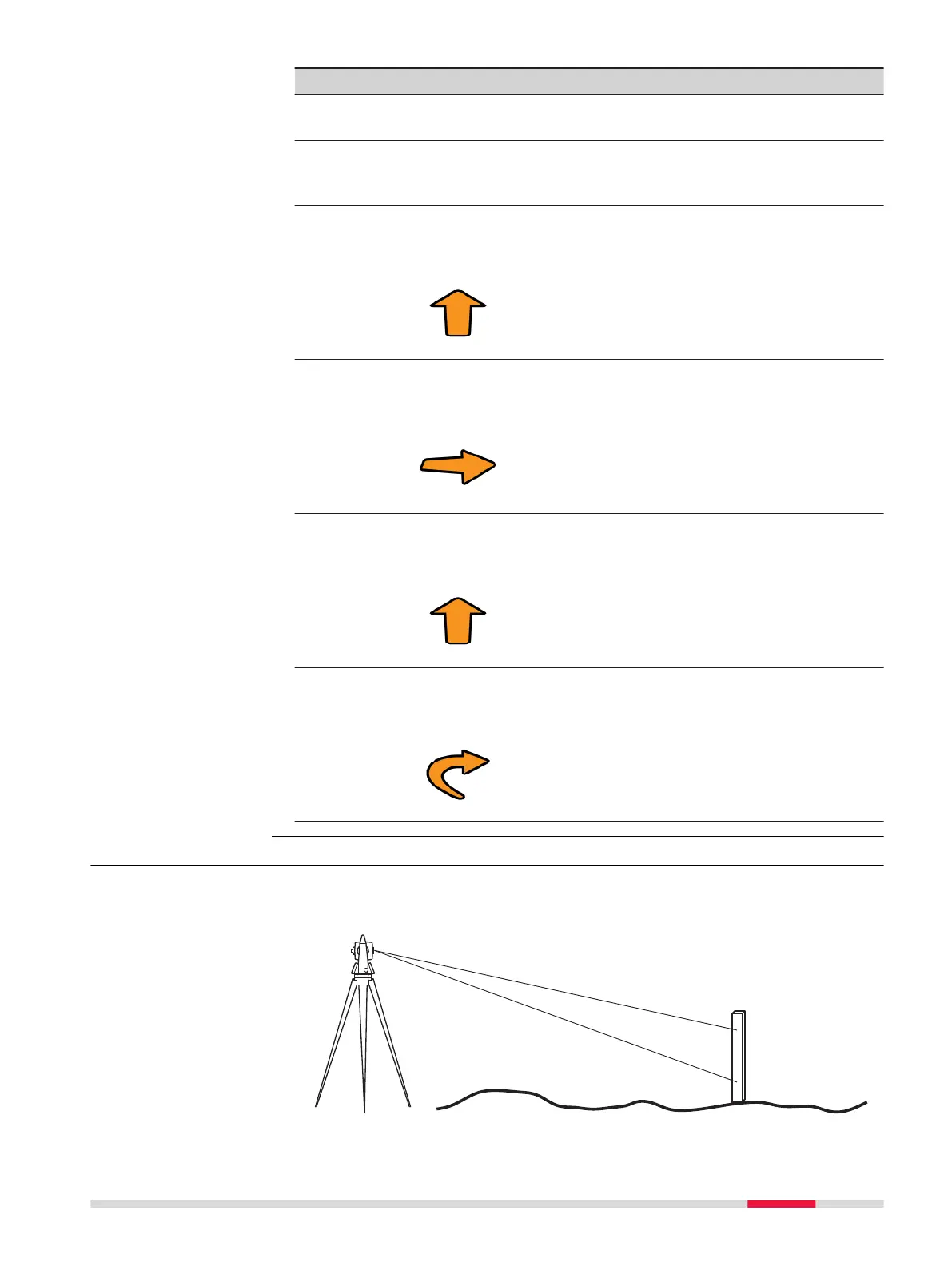

43.3.11 Workflow for Height (aim to stake ht) - for TS
In this example, the height of the surface grade is marked on a peg by using
the aut
o position function.
a
b
c
Road_072
Step-by-step
