2-116 Service Manual
5062
4

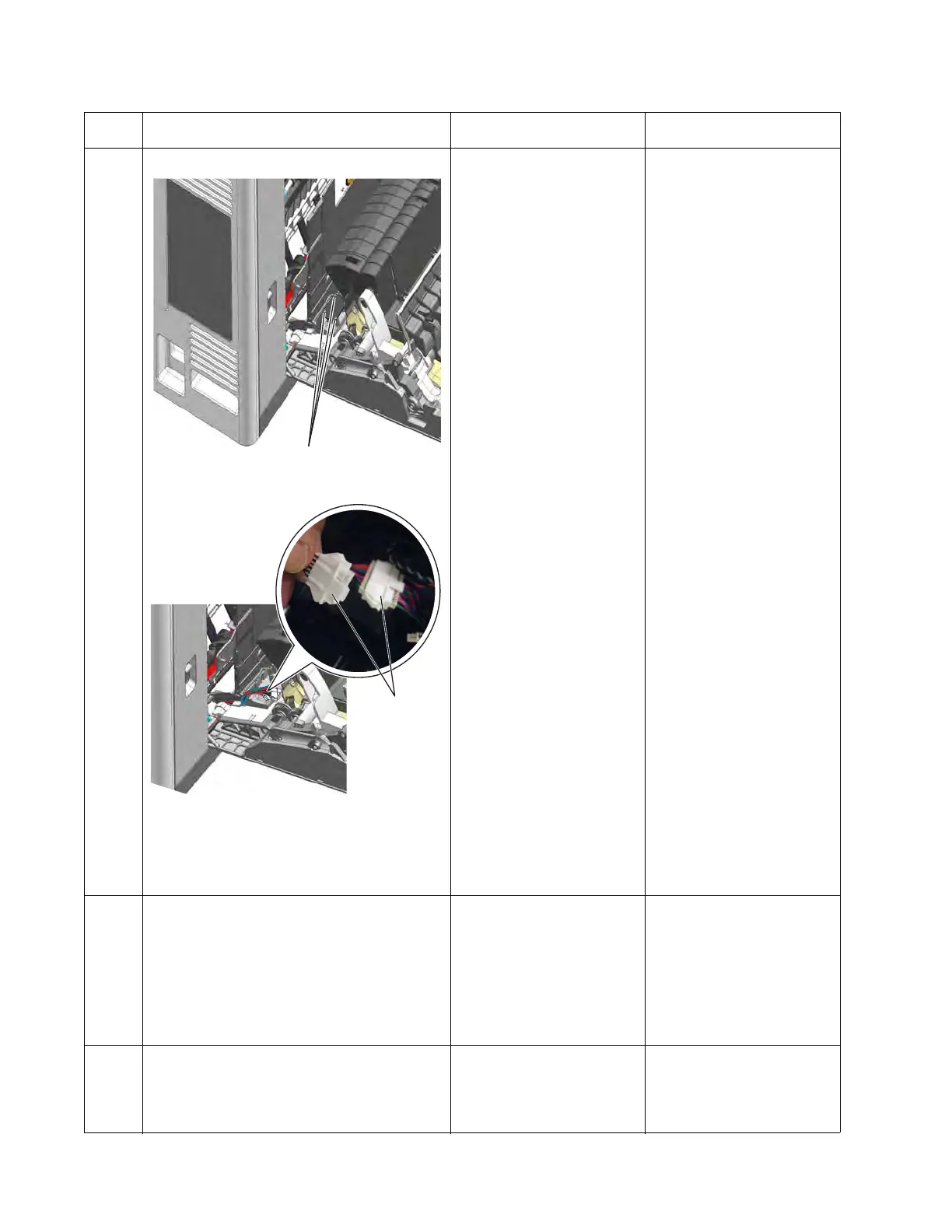

Remove the duplex cable cover.
Check the cable for proper connection.
Is the cable connected correctly?
Go to step 5. Reseat the cable.
5
Check the cable for damage.
Is the cable properly connected?
Replace the duplexer
cable.
To access the cable, see
“LVPS exit duct removal”
on page 4-85
and
“Left cover removal” on
page 4-10.
Go to step 6.
6
Replace the duplex assembly. See “Duplex
assembly removal” on page 4-51.
Does the problem persist?
Replace the system board.
See “System board
removal” on page 4-142.
Problem solved.
Step Questions / actions Yes No
