Repair information 4-241

5062

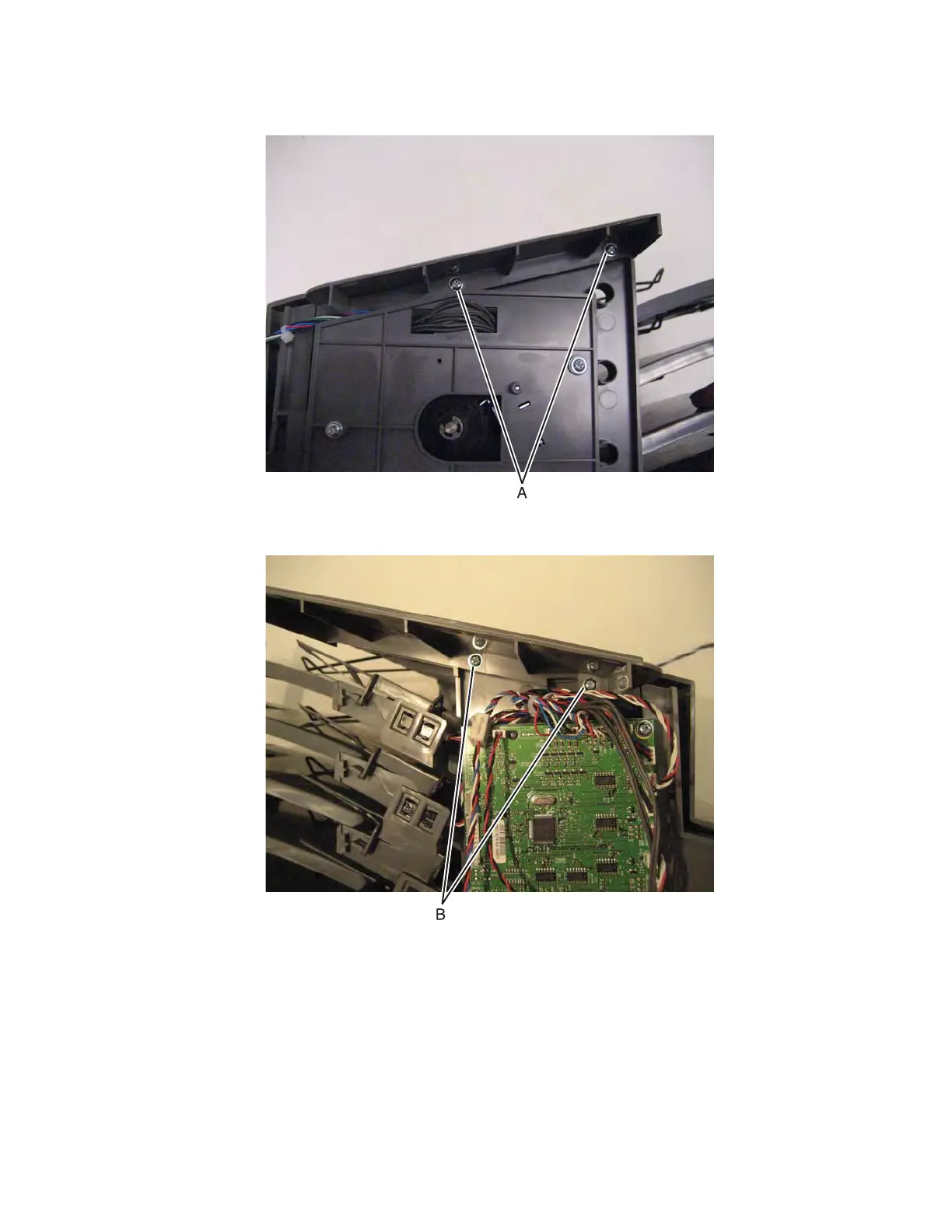

3. Remove the two screws (A), and remove the top cover.

4. Remove the rear cover. See “5-bin mailbox rear cover removal” on page 4-239.

5. Remove the two screws (B), and then lift off the top cover.
