Lexmark C935 - Right Cover Assembly Removal

4-4 Printer Service Manual
5057-XXX
Go Back
Previous
Next

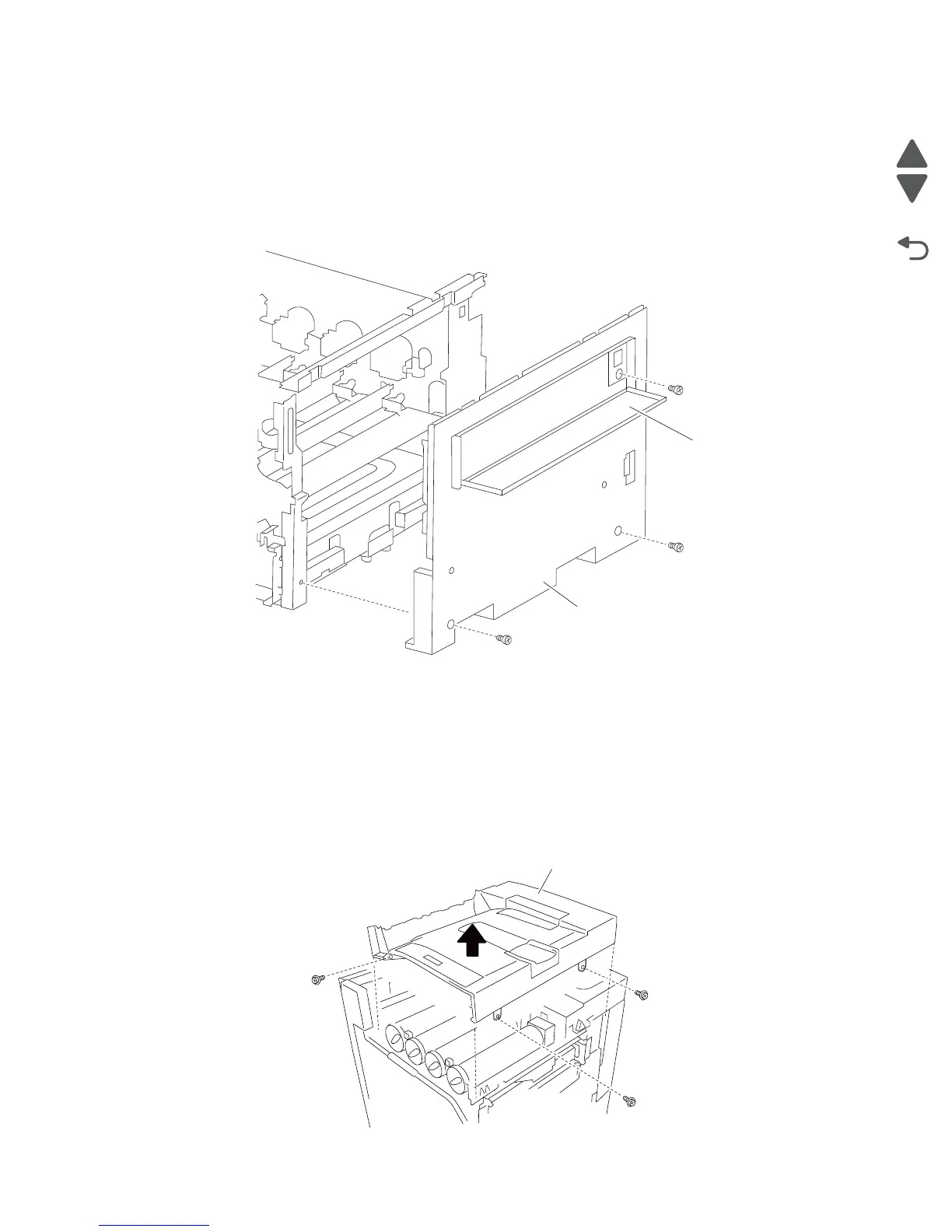

Right cover assembly removal
Note: Detach the finisher if equipped. Refer to the MFP or Printer Finisher Service Manual.
1. Open the transfer belt unit access door (A).
2. Remove the three screws securing the right cover assembly (B) to the machine.
3. Move the right cover assembly (B) down, and pull out.
4. Remove the right cover assembly (B).
Top cover assembly removal
1. Open the printer front door assembly.
2. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
3. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4.
4. Remove the three screws securing the top cover assembly (A) to the machine.
5. Gently detach the top cover assembly (A).
6. Disconnect the operator panel cable assembly (B) from under the top cover assembly (A).
7. Remove the top cover assembly (A).
B
A
A
