Lexmark C935 - Assembly 23: Transfer Belt

7-26 MFP Service Manual
5057-XXX
Go Back
Previous
Next

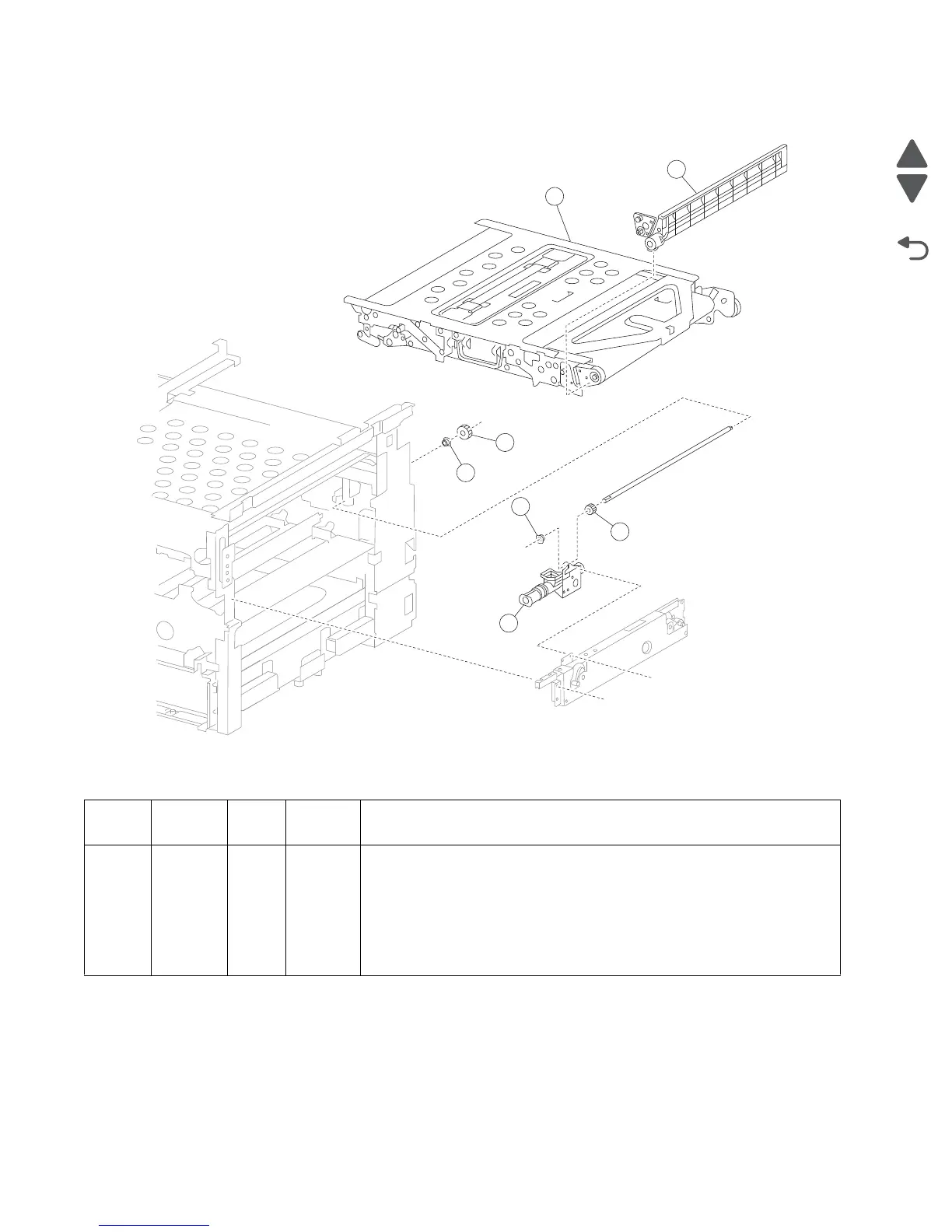

Assembly 23: Transfer belt
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3732 1 1 Transfer belt unit assembly
2 40X3733 1 1 Transfer belt cleaner assembly
3 40X3729 1 1 Transfer belt auger front gear 14T
4 40X3731 1 1 Transfer belt auger assembly
5 40X0880 6 1 Bushing 6 mm
6 40X3730 1 1 Transfer belt auger rear gear 18T
3
5
2
4
6
1
5
