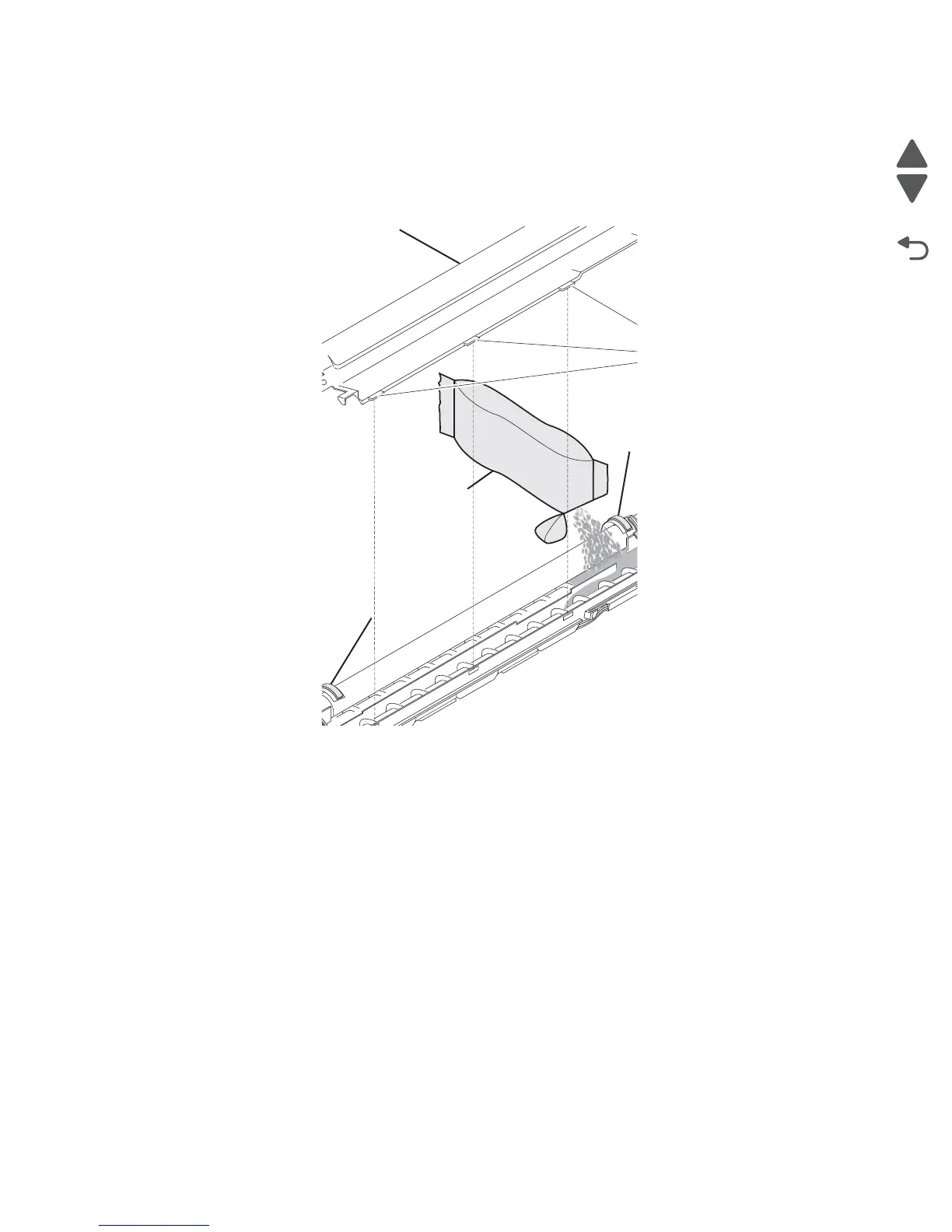

1X 500-sheet drawer (1TM)—separation roll one-way friction clutch removal
1. Remove the media tray assembly.
2. Remove the separation roll. See “1X 500-sheet drawer (1TM)—separation roll removal” on page 4-205.
3. Remove the separation roll spacer (A).
4. Remove the separation roll one-way friction clutch (B).
B
A
Seal
Sea
