Lexmark C935 User Manual

Diagnostic information 2-83
5057-XXX
Go Back
Previous
Next

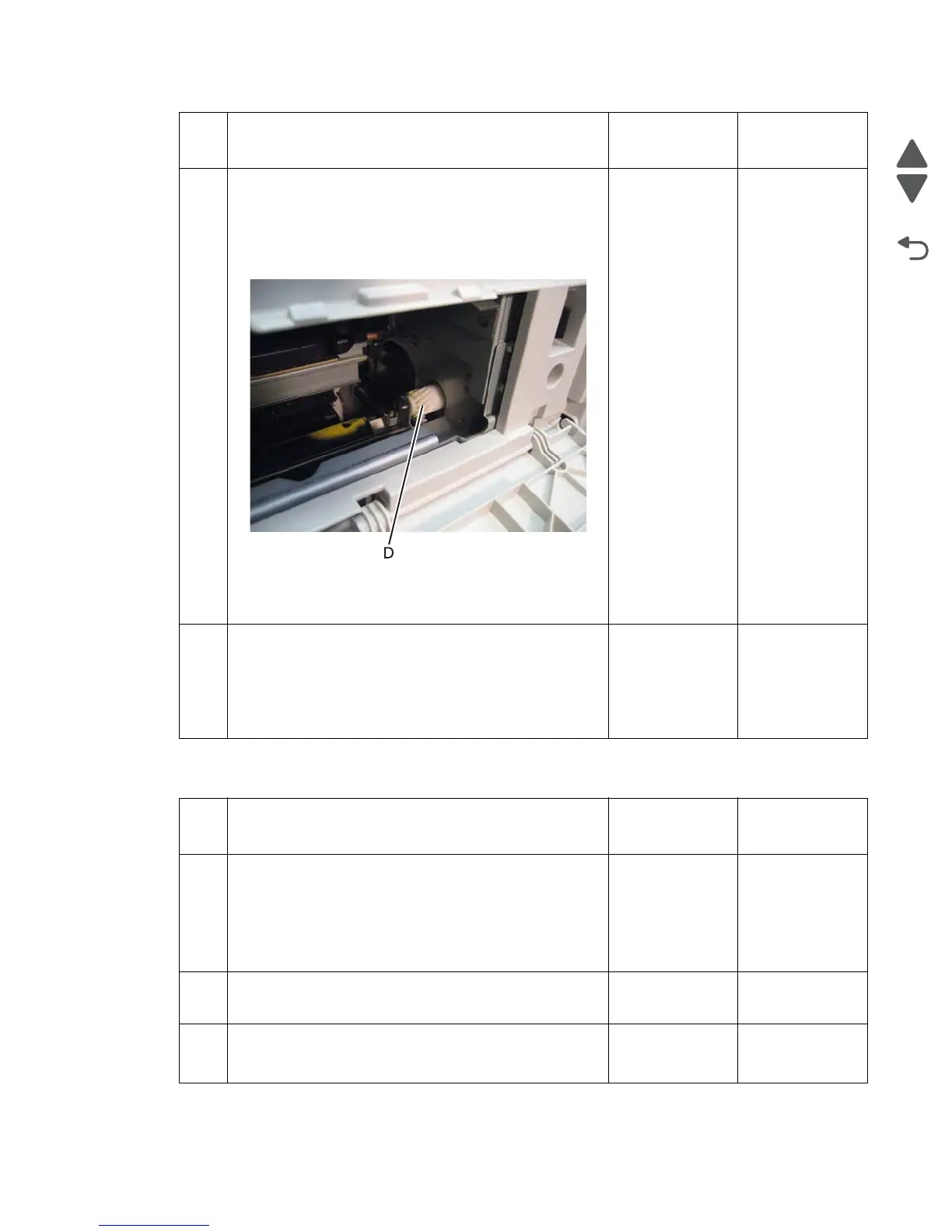

904.02 Sensor (transfer belt edge) failure
11
Check the transfer belt drive motor assembly drive gear for
damage.
1. Remove the transfer belt unit assembly. Go to
“Transfer belt unit assembly removal” on page 4-16.
2. Inspect the transfer belt drive motor assembly drive gear
(D) for damage.
Is the transfer belt drive motor assembly drive gear
damaged?
Replace the
transfer belt drive
motor assembly.
Contact the next
level of support.
12
Check the transfer belt steering motor for proper
connection.
Is the above component properly connected.
Replace the
transfer belt
steering motor.
Go to “Transfer
belt steering
motor removal”
on page 4-76
.
Replace the
connection.
Step Check Yes No
1 Reset the transfer belt HP failure lock out condition.
1. Enter the Diagnostics Menu.
2. Touch Trans belt fail HP.
3. Touch Trans belt fail HP.
Does the transfer belt appear damaged or torn in half?
Go to step 2. Go to step 3.
2
Check the transfer belt unit assembly for proper installation.
Is the above component properly installed?
Go to step 2. Re-install the
transfer belt unit
assembly.
3
Check the transfer belt unit assembly for damage.
Is the above component free of damage to the frame and
the belt?
Go to step 3. Replace the
transfer belt unit
assembly.
Step Check Yes No
