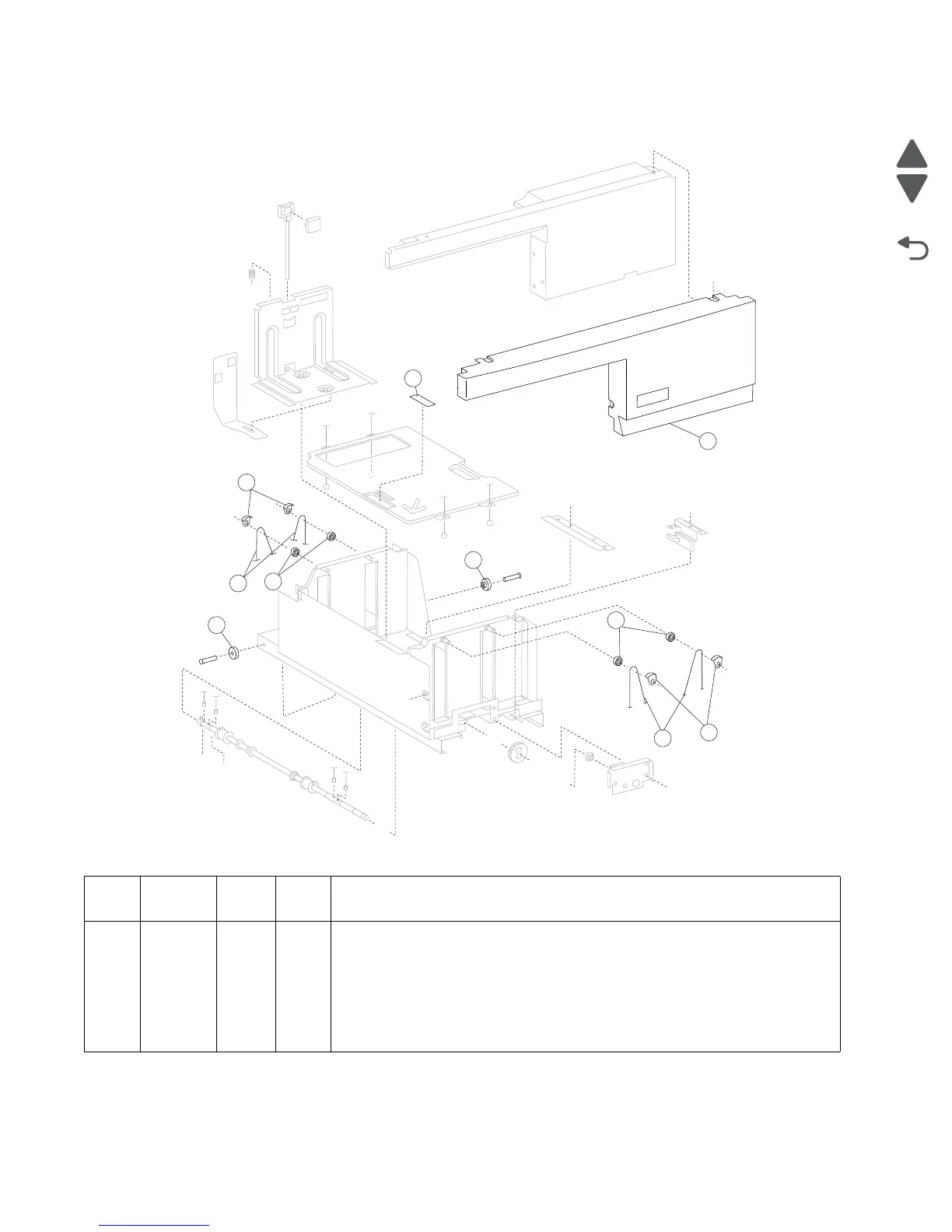

Assembly 46: TTM media tray 4
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3836 1 1 TTM tray 4 front cover
2 40X4126 4 1 TTM tray lift idler pulley
3 40X4127 4 1 TTM tray lift idler pulley guide
4 40X4085 4 1 TTM tray 4 lift cable
5 40X0723 1 2 TTM tray 4 rear support roll (2)
6 40X0711 2 1 TTM tray separation pad
6
2
1
3
4
4
3
5
5
2
