2000-sheet dual input (TTM)—tray 4 front cables removal
1. Remove the media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4 assembly
removal” on page 4-127.
2. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)—media tray 4 front cover removal” on
page 4-132.

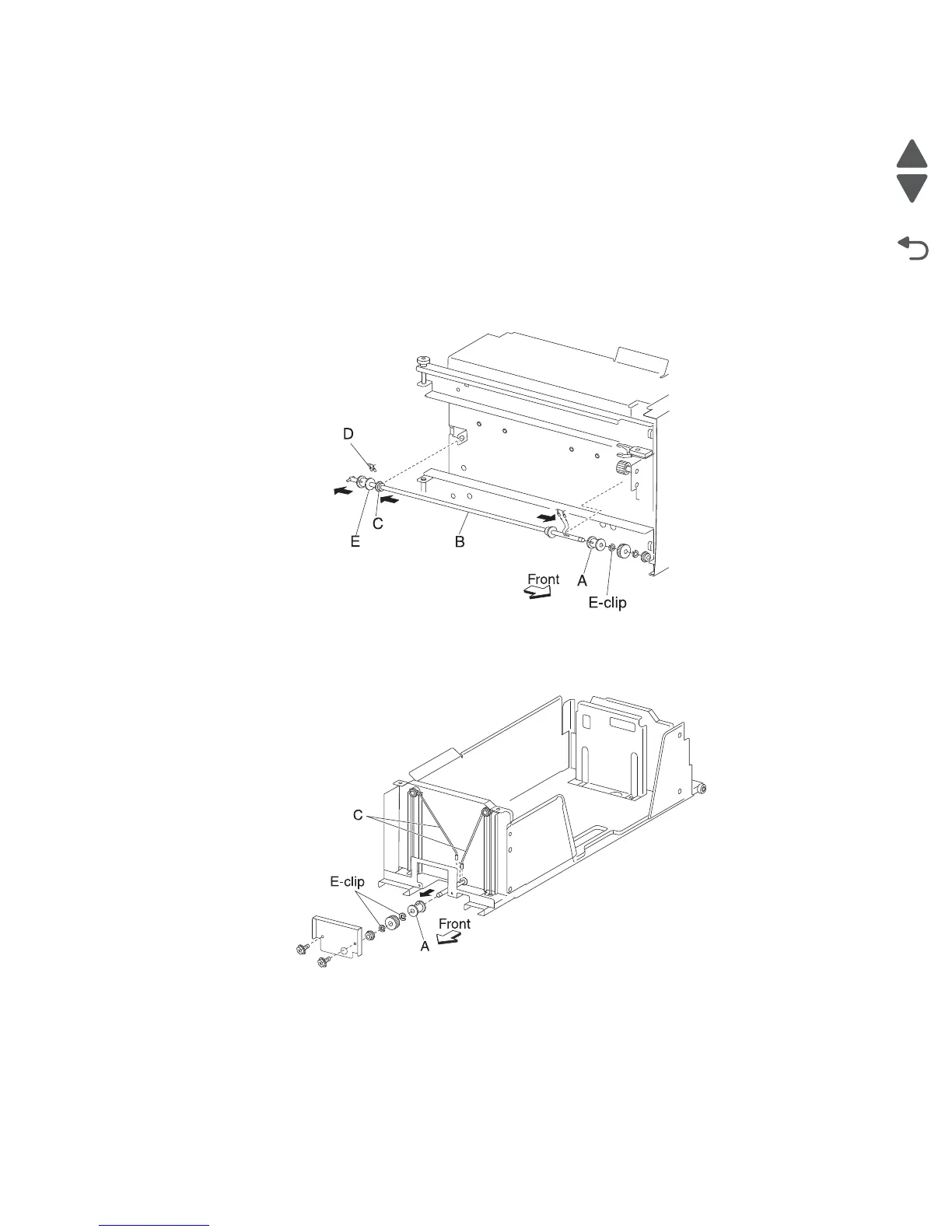

3. Place the media tray 4 assembly on its right side, as shown in the figure.
4. Remove the E-clip with a prying tool securing the front tray lift pulley (A) to the tray lift shaft assembly (B).
5. Remove the front tray lift pulley (A).
Note: The tray 4 front cables (C) become detached.
6. Remove the tray 4 front cables (C) from the tray lift shaft assembly (B).
7. Place the media tray 4 assembly back in its upright position.
8. Remove two E-clips with a prying tool securing the two small pulleys (D) on the front of the frame assembly.
9. Remove the two small guides (E) and the two small pulleys (D).
