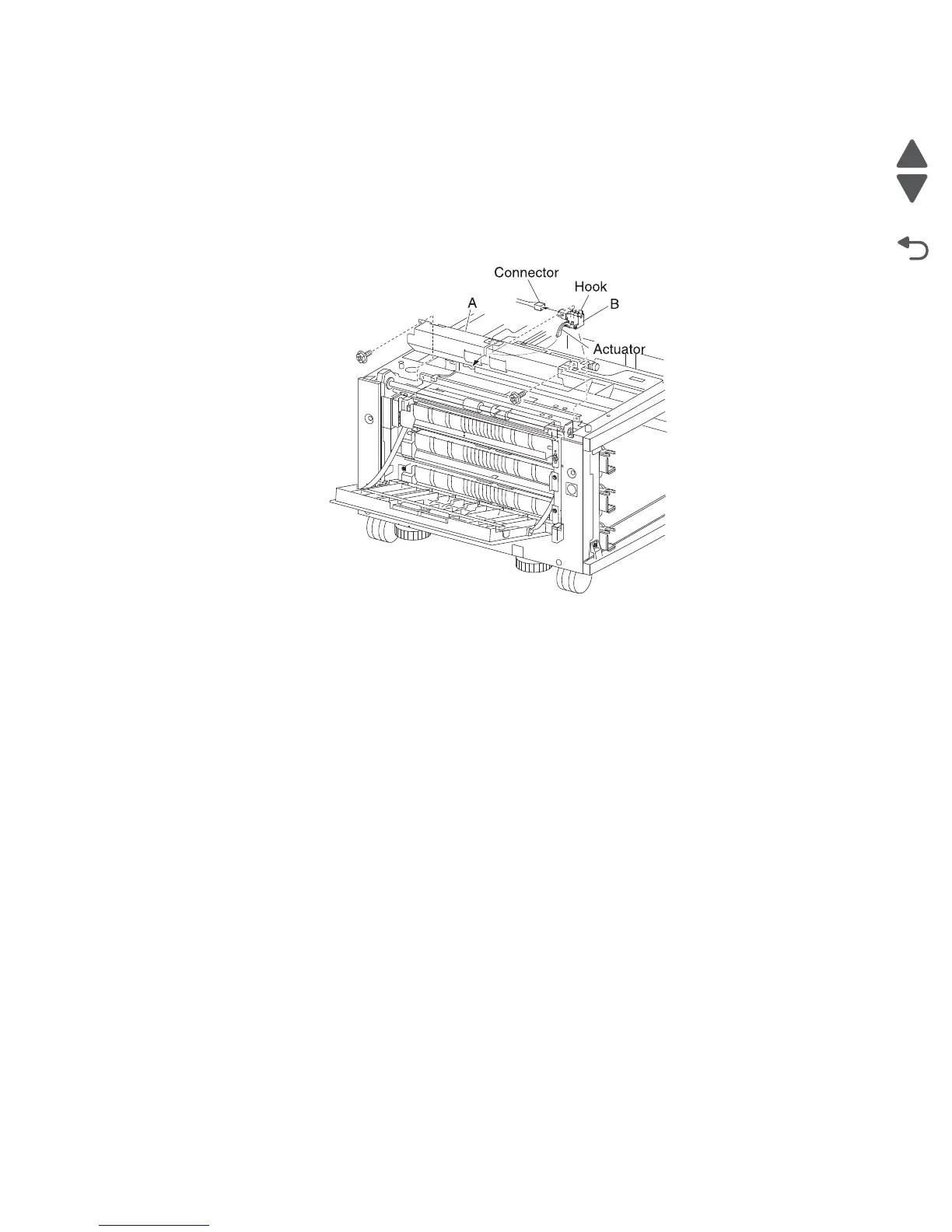

3X 500-sheet drawer (3TM)—sensor (tray 2 feed-out) removal
1. Open the 3TM left door assembly.
2. Remove the two screws securing bracket (A) to the machine.
3. Remove the bracket (A).
4. Disconnect the connector from the sensor (tray 2 feed-out) (B).
5. Release the hooks securing the sensor (tray 2 feed-out) (B) to the bracket (B).
6. Remove the sensor (tray 2 feed-out) (B).
