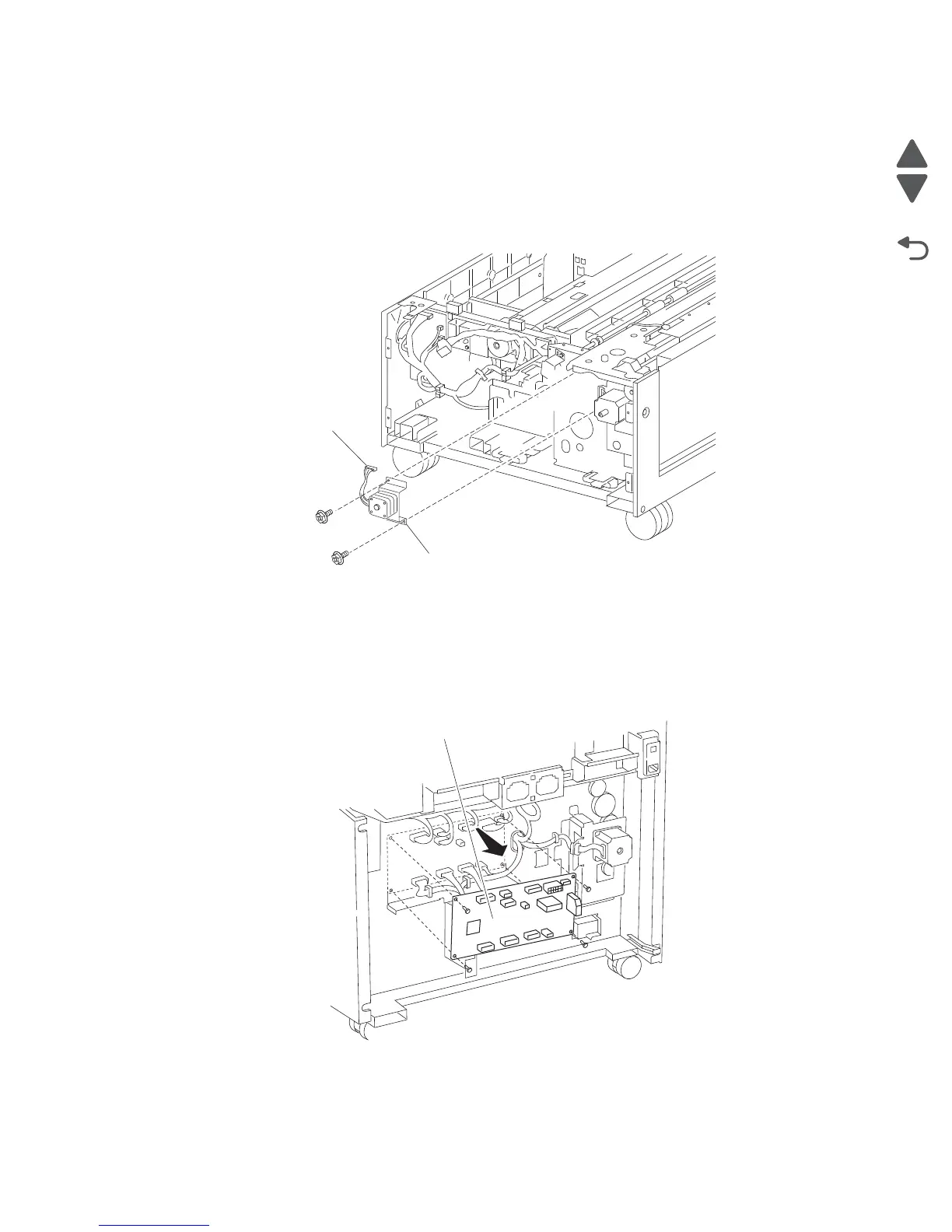

2000-sheet dual input (TTM)—TTM tray 4 transport motor removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-124.
2. Disconnect the connector from the TTM tray 4 transport motor (A).
3. Release the harness from the clamp.
4. Remove the two screws securing the TTM tray 4 transport motor (A) to the machine.
5. Remove the TTM transport drive motor (A).
2000-sheet dual input (TTM)—TTM controller card assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)—rear cover removal” on page 4-124.
2. Disconnect all connectors from the TTM controller card assembly (A).
3. Remove the four screws securing the TTM controller card assembly (A) to the machine.
4. Remove the TTM controller card assembly (A).
A
Connector
A
