2. Remove the tray module left cover (A).

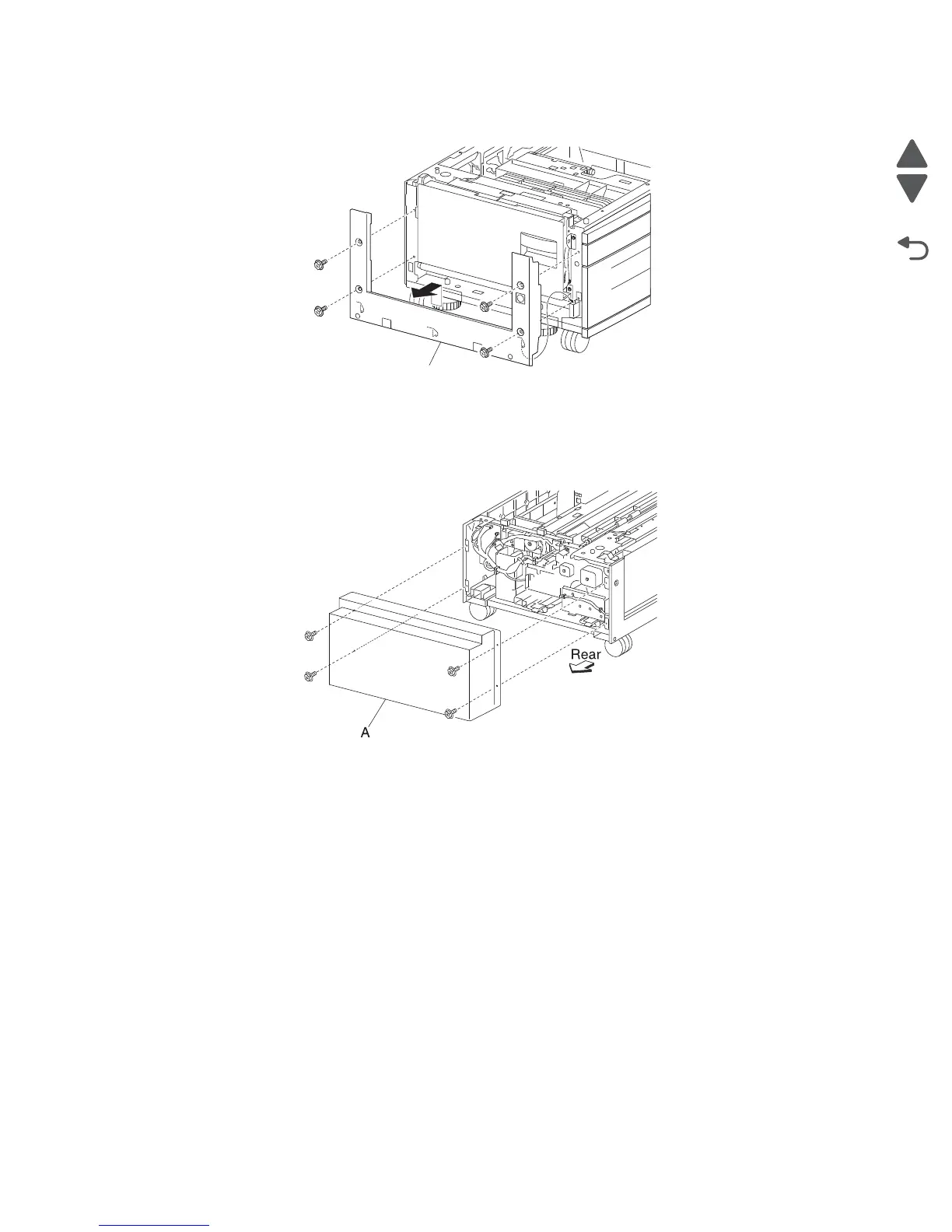

2000-sheet dual input (TTM)—rear cover removal
1. Remove the four screws securing the rear cover (A).
2. Remove the rear cover (A).
2000-sheet dual input (TTM)—caster removal
1. Remove the media tray 2.
2. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal” on
page 4-123.
3. Remove media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3 assembly removal” on
page 4-128.
4. Remove media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4 assembly removal” on
page 4-127.
5. Place the right side of the drawer down.
6. Remove three screws securing the caster (A).
A
