Lexmark C935 - Duplex Unit Assembly Removal

4-10 Printer Service Manual
5057-XXX
Go Back
Previous
Next
Duplex unit assembly removal

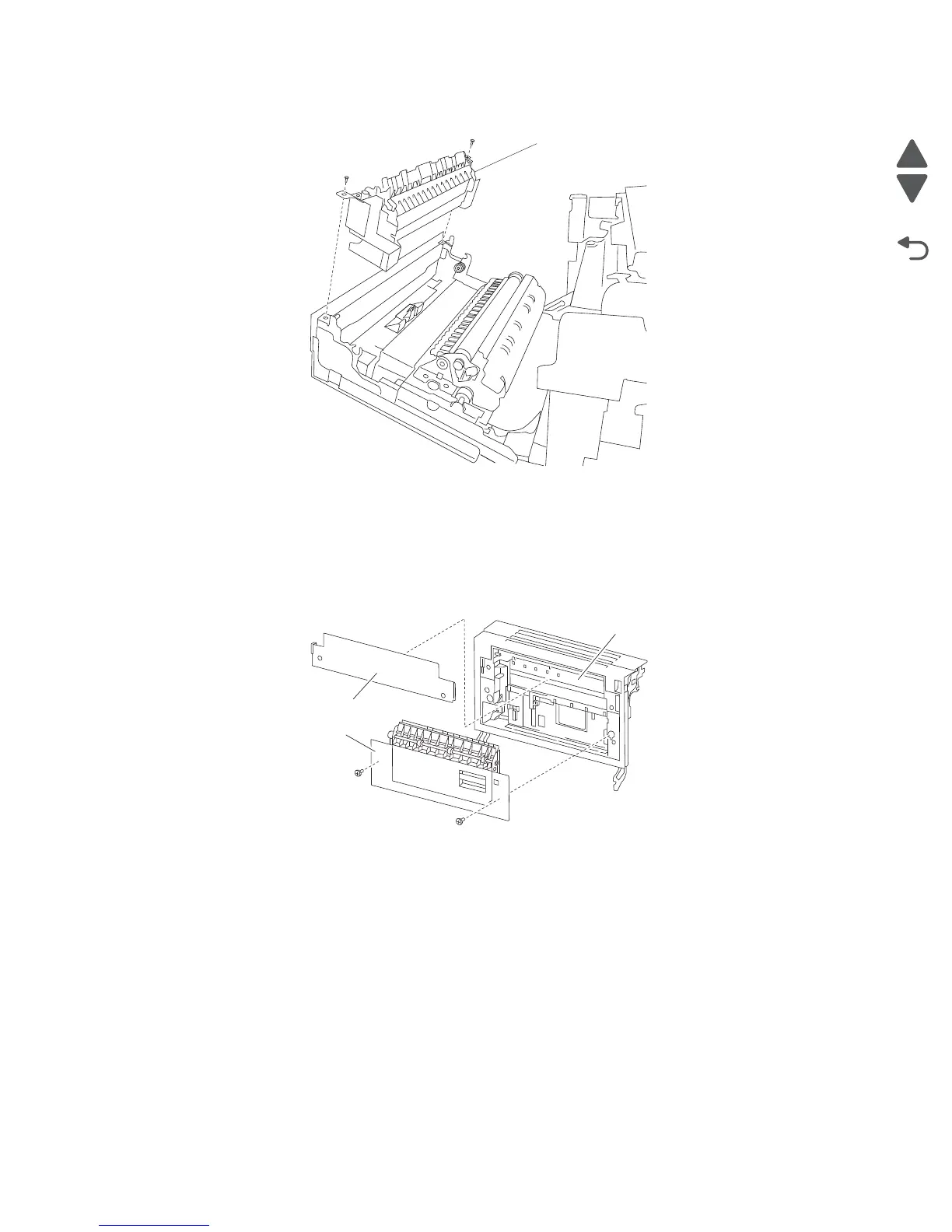

1. Remove the two screws securing the duplex unit assembly (A) to the printer left door assembly (B).
2. Gently pull the duplex unit assembly (A) from the printer left door assembly (B).
Note: When removing the duplex unit assembly (A), the plastic panel (C) may become detached.
3. Remove the duplex unit assembly (A).
C
C
A
B
