16. Remove the CMYK PC cartridge drive motor assembly (A).

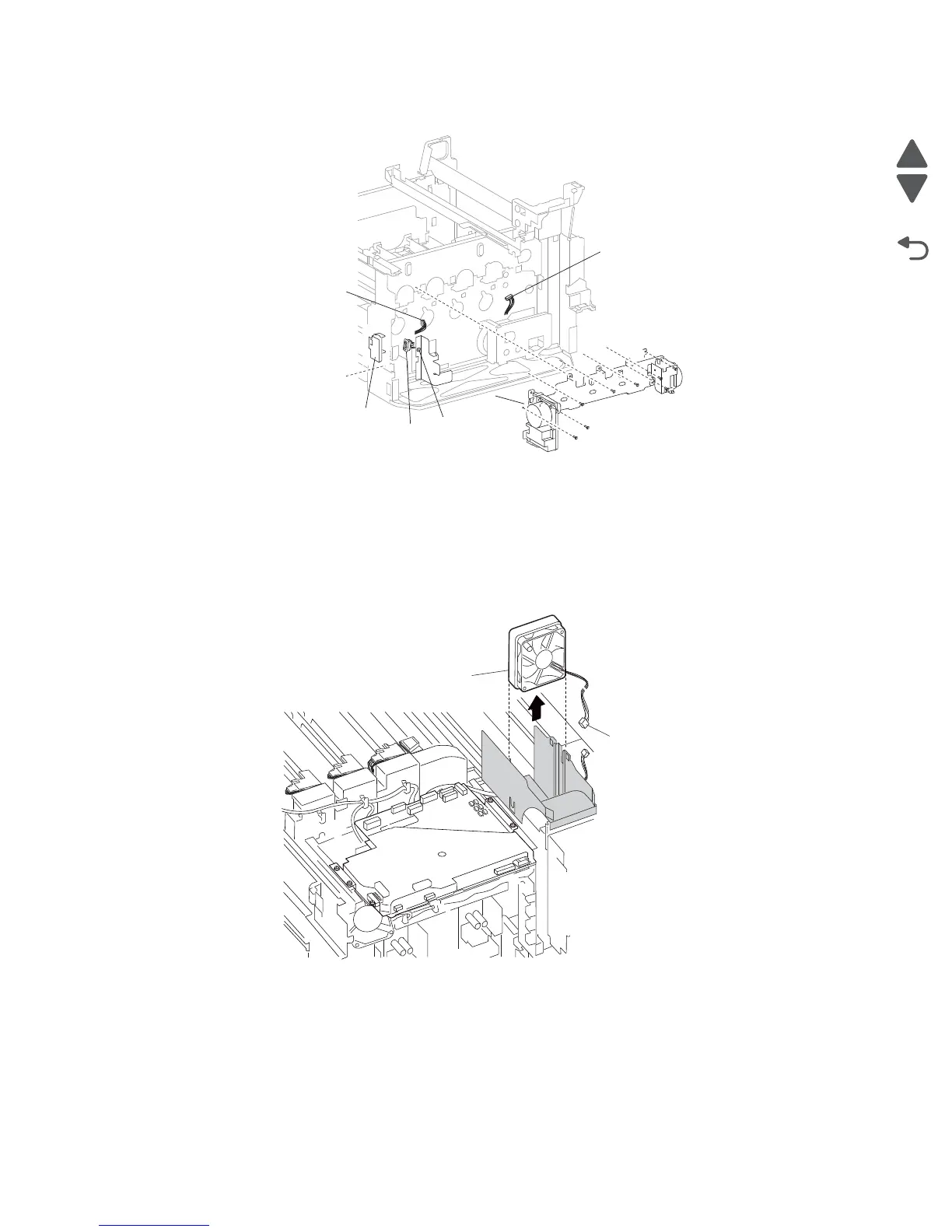

Fuser cooling fan removal
1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-4.
2. Disconnect the connector from the fuser cooling fan (A).
3. Remove the harness from the clamps.
4. Lift the fuser cooling fan (A).
5. Remove the fuser cooling fan.
Main power switch actuator removal
1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-4.
2. Remove the screw securing the main power switch actuator (A) to the machine.
3. Release the hook securing the main power switch actuator (A) to the machine.
Connector
A
Connector
B
C
Screwdriver
access hole
A
Connector
