1X 500-sheet drawer (1TM)—switch (media size) removal
1. Remove the media tray 2 assembly.
2. Open the 1TM front door.

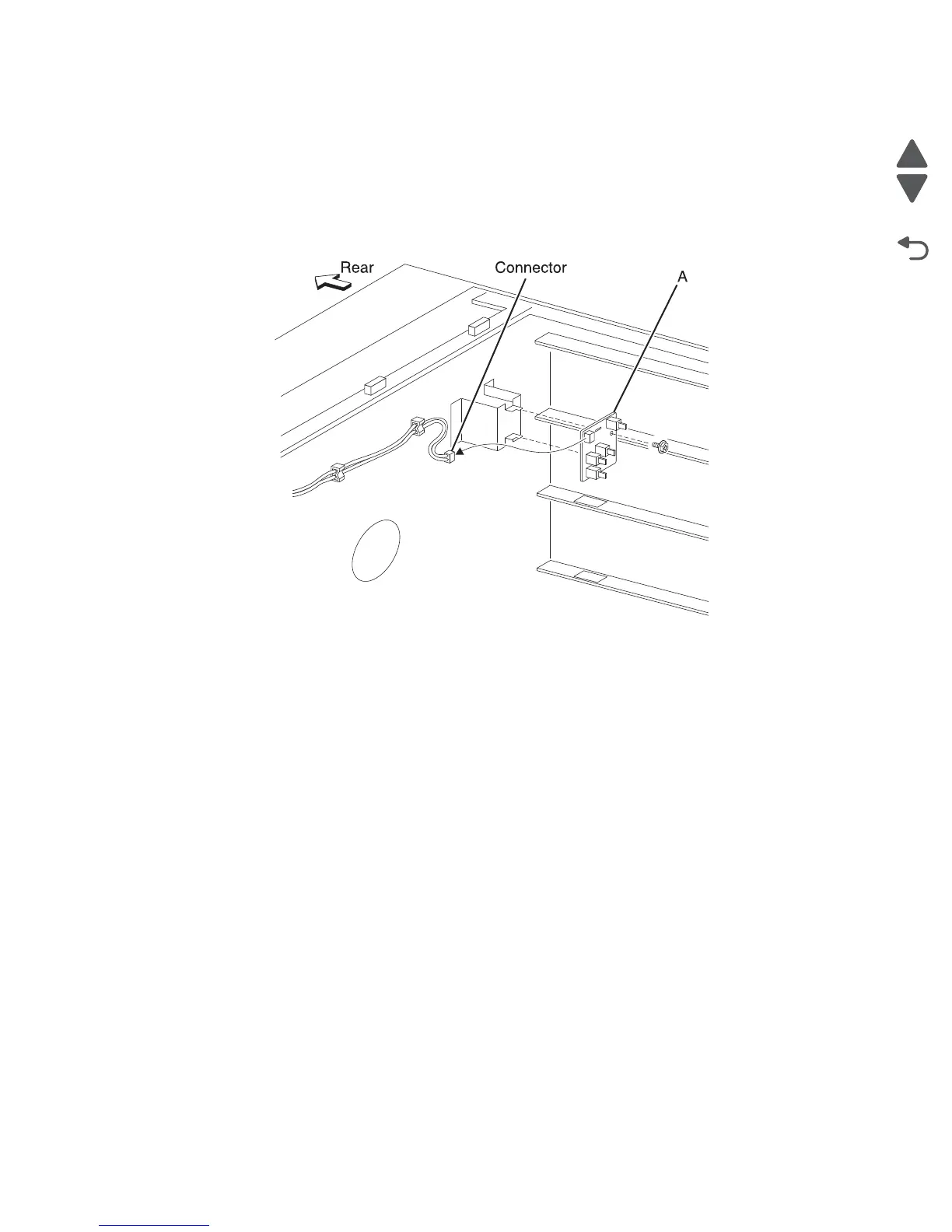

3. Disconnect the connector from the switch (media size) (A).
4. Remove the screw securing the switch (media size) (A).
5. Remove the switch (media size) (A).
