Lexmark C935 - Feed Roll Removal

Repair information 4-115
5057-XXX
Go Back
Previous
Next

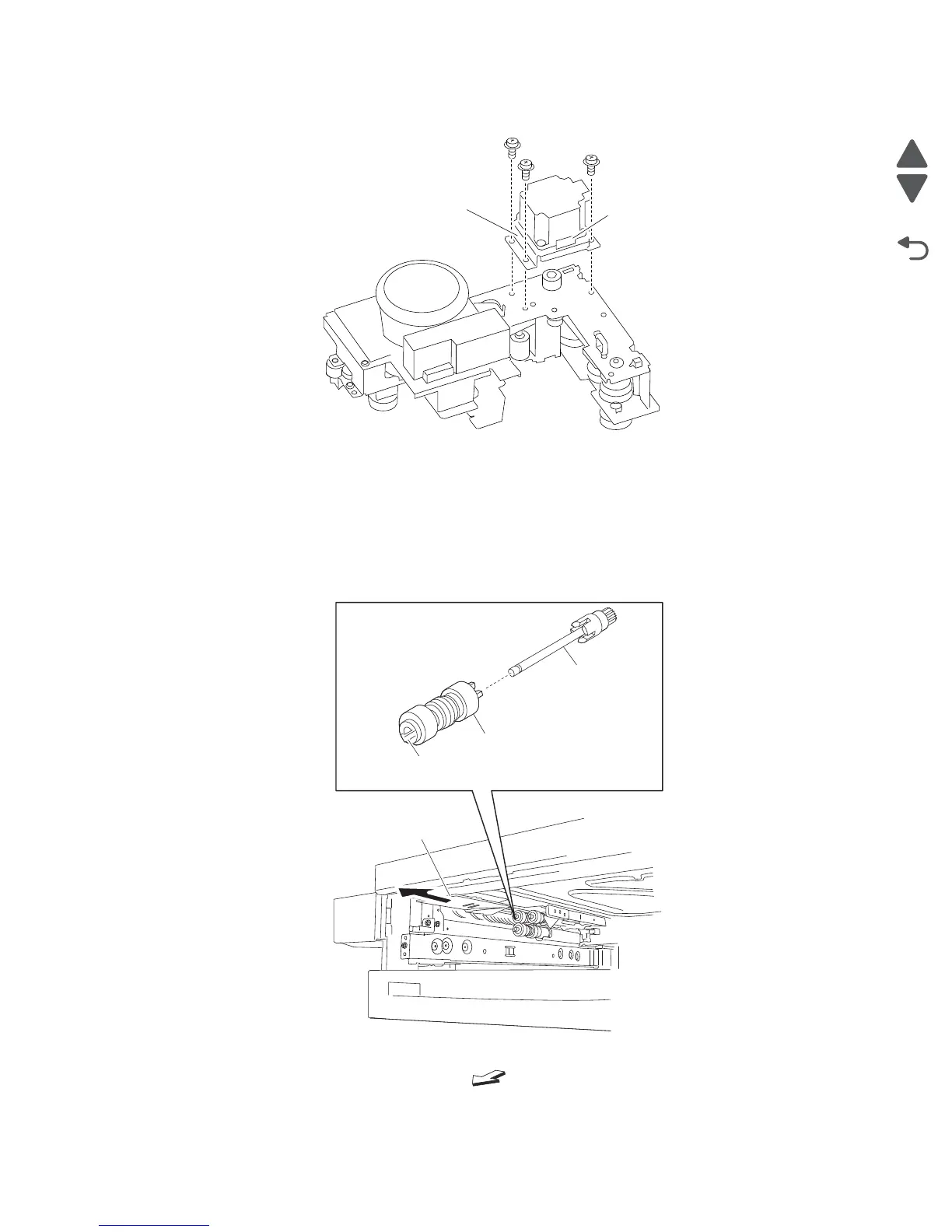

9. Remove the MPF/transport drive motor assembly (A).
Feed roll removal
1. Remove the media tray.
2. Move the feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the feed roll (B) to the shaft (C).
4. Remove the feed roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
A
Connector
Front
A
Hook
C
B
