Lexmark C935 - X 500-Sheet Drawer (3 Tm)-Sensor (Media Out) Removal

Repair information 4-179
5057-XXX
Go Back
Previous
Next
3X 500-sheet drawer (3TM)—sensor (media out) removal
1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)—media feed unit assembly
removal (tray 2)” on page 4-173 or “3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray
3)” on page 4-171.
2. Remove the media out actuator. See “3X 500-sheet drawer (3TM)—media out actuator removal” on
page 4-177.

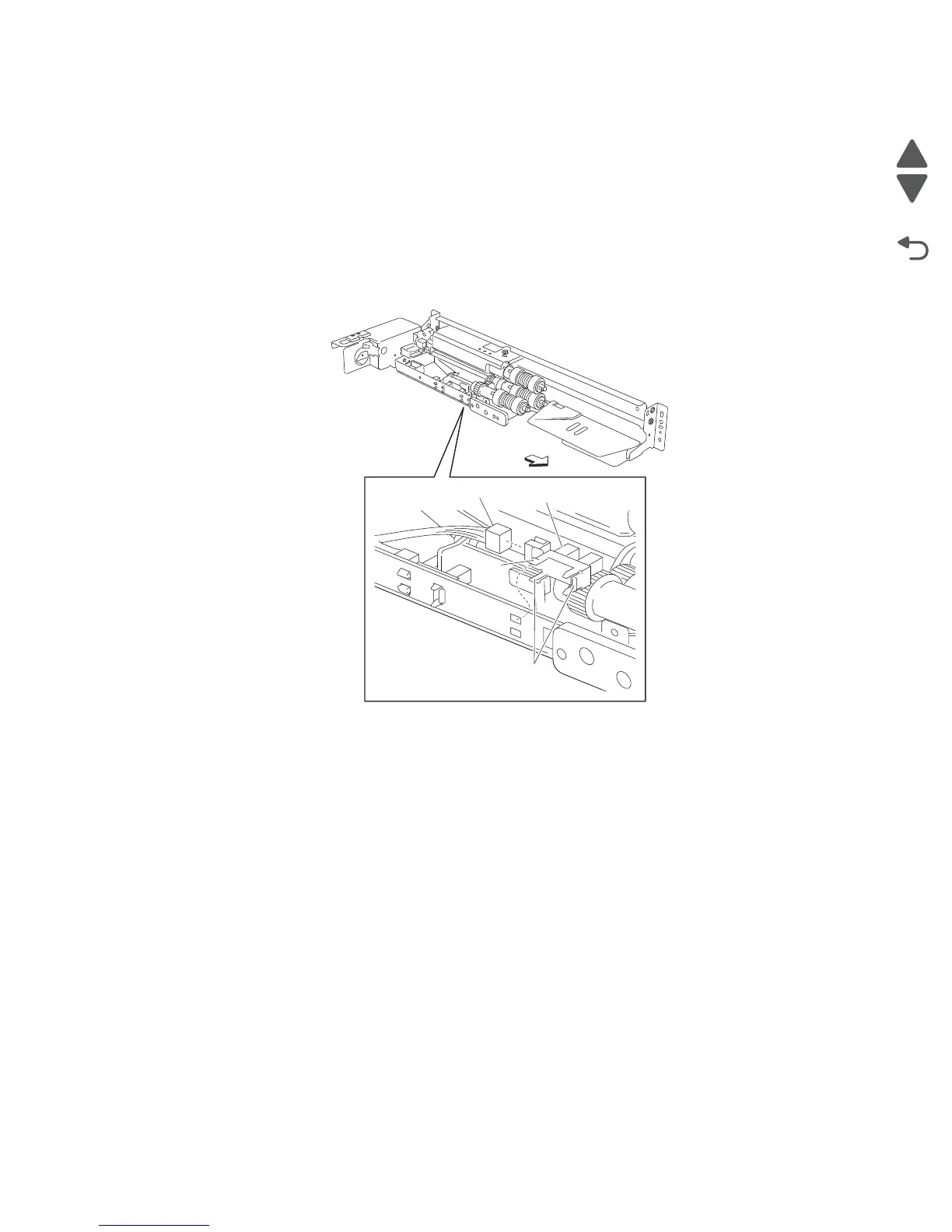

3. Disconnect the connector from the sensor (media out) (A).
4. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
5. Remove the sensor (media out) (A).
Front
Harness
A
Hooks
Lower view
Hook
