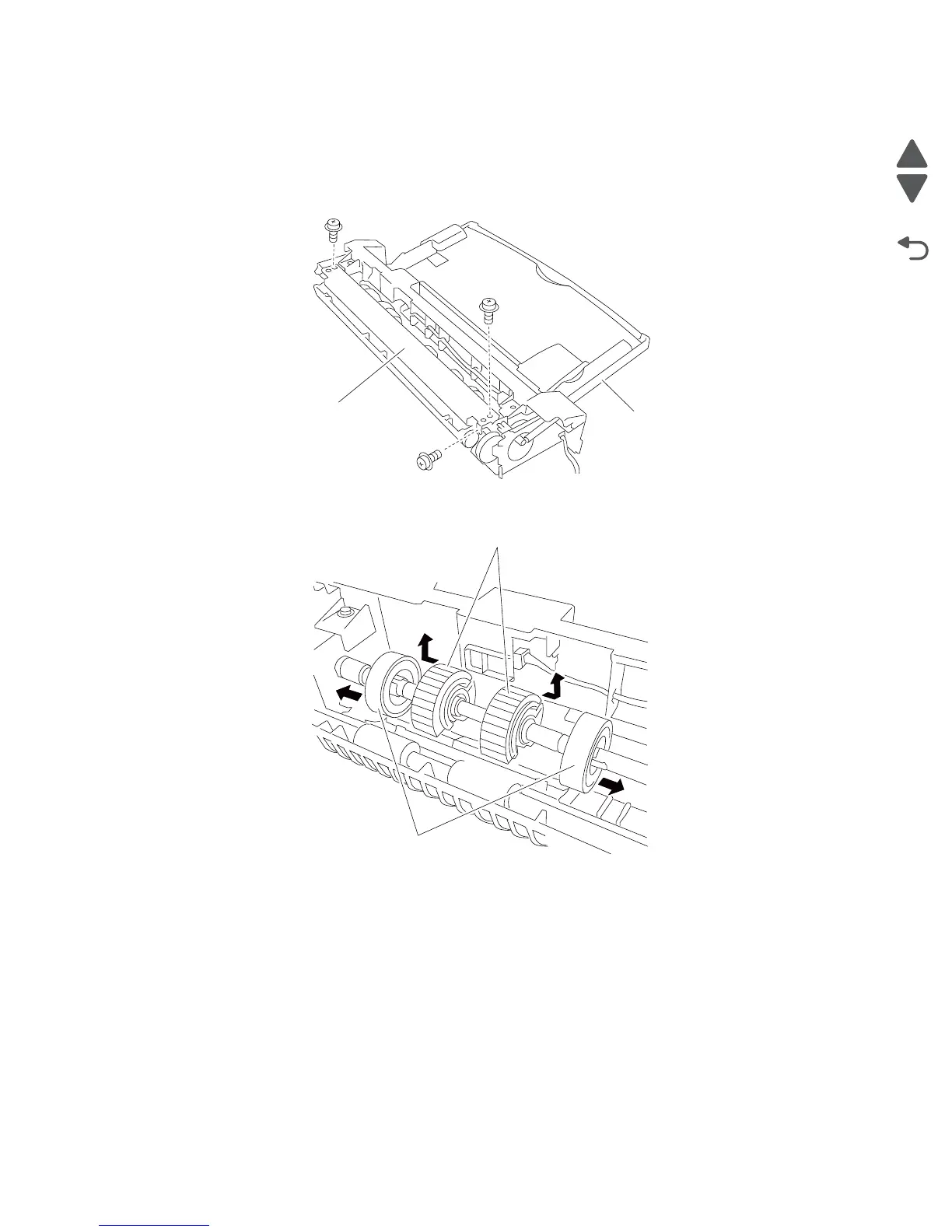

6. Release the two hooks of the two feed shaft cores (B), and move them both outwards in the directions in the
arrows.
Note: When removing the MPF feed roll assembly (C), do not touch the rubber surface.
7. Remove the two MPF feed roll assemblies (C) by moving them outward in the direction of the arrows and lifting
upwards.
Replacement note: When replacing the MPF feed roll assemblies (C), do not touch the rubber surface.
Replacement note: When replacing the MPF feed roll assemblies (C), ensure that the directional arrow is properly
aligned.
Media feed lift motor removal
8. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on page 4-8.
1. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-21.
2. Disconnect the harness from the media feed lift motor (A).
3. Remove the two screws securing the media feed lift motor to the media feed unit assembly (B).
A
B
C
B
