Lexmark C935 - Registration; Transport Roll Assembly Removal

4-36 Printer Service Manual
5057-XXX
Go Back
Previous
Next
Warning: When removing the main transfer roll assembly (B), do not touch the roll surface.
Replacement warning: When reinstalling the transfer roll assembly (B), do not touch the roll surface.

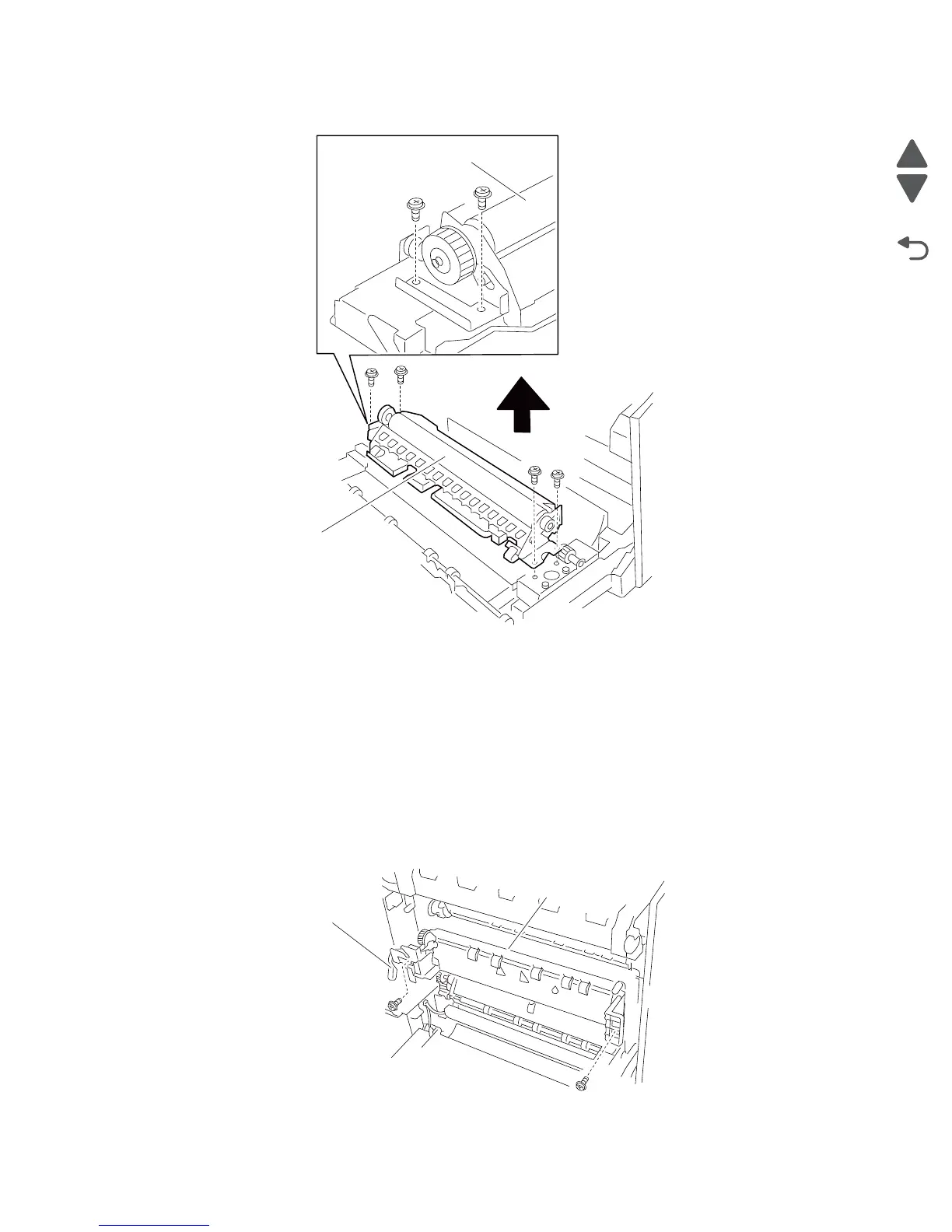

Registration / transport roll assembly removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
4. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-26.
5. Open the printer left lower door assembly.
6. Disconnect the connector from the registration transport roll assembly (A).
7. Remove the two screws securing the registration transport roll assembly (A) to the machine.
8. Remove the registration transport roll assembly (A).
B
B
A
Connector
