Lexmark C935 - Transfer Belt Lift Mechanism Adjustment

4-228 Printer Service Manual
5057-XXX
Go Back
Previous
Next
Transfer belt lift mechanism adjustment
Step Check Yes No
1 Access the transfer belt lift latch assembly.
1. Open the printer front door.
2. Release the transfer belt lift latch assembly.
3. Lower the transfer belt lift handle assembly.
Does the transfer belt lift handle assembly lower and
raise smoothly (without binding)?
Go to step 7. Go to next step.
2

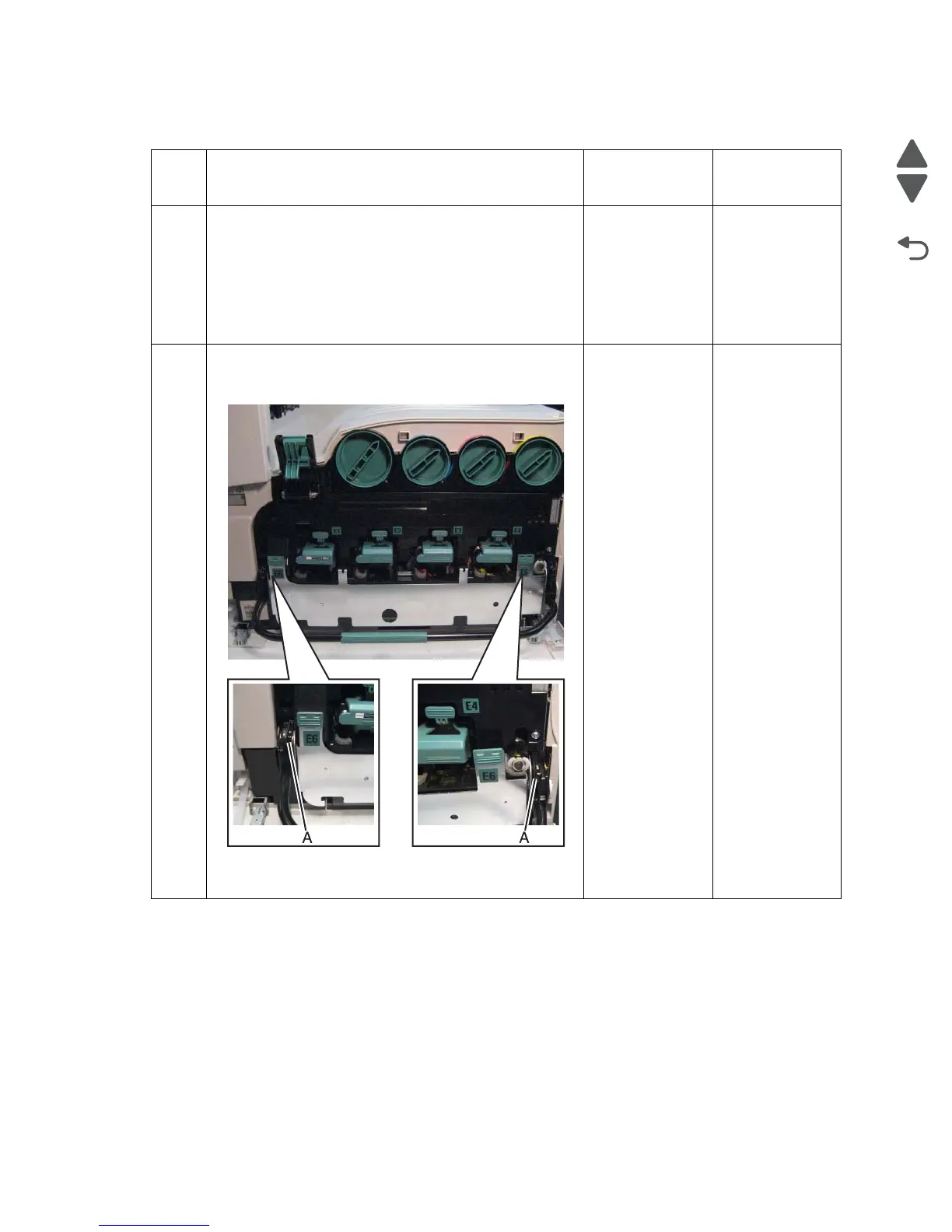

Check that the right transfer belt lift assembly and the left
transfer belt lift assembly plungers (A) move when the
handle is raised and lowered.
Are both plungers moving when the handle is raised and
lowered?
Go to step x. Go to next step.
