Lexmark C935 - Page 527

Repair information 4-229
5057-XXX
Go Back
Previous
Next
3

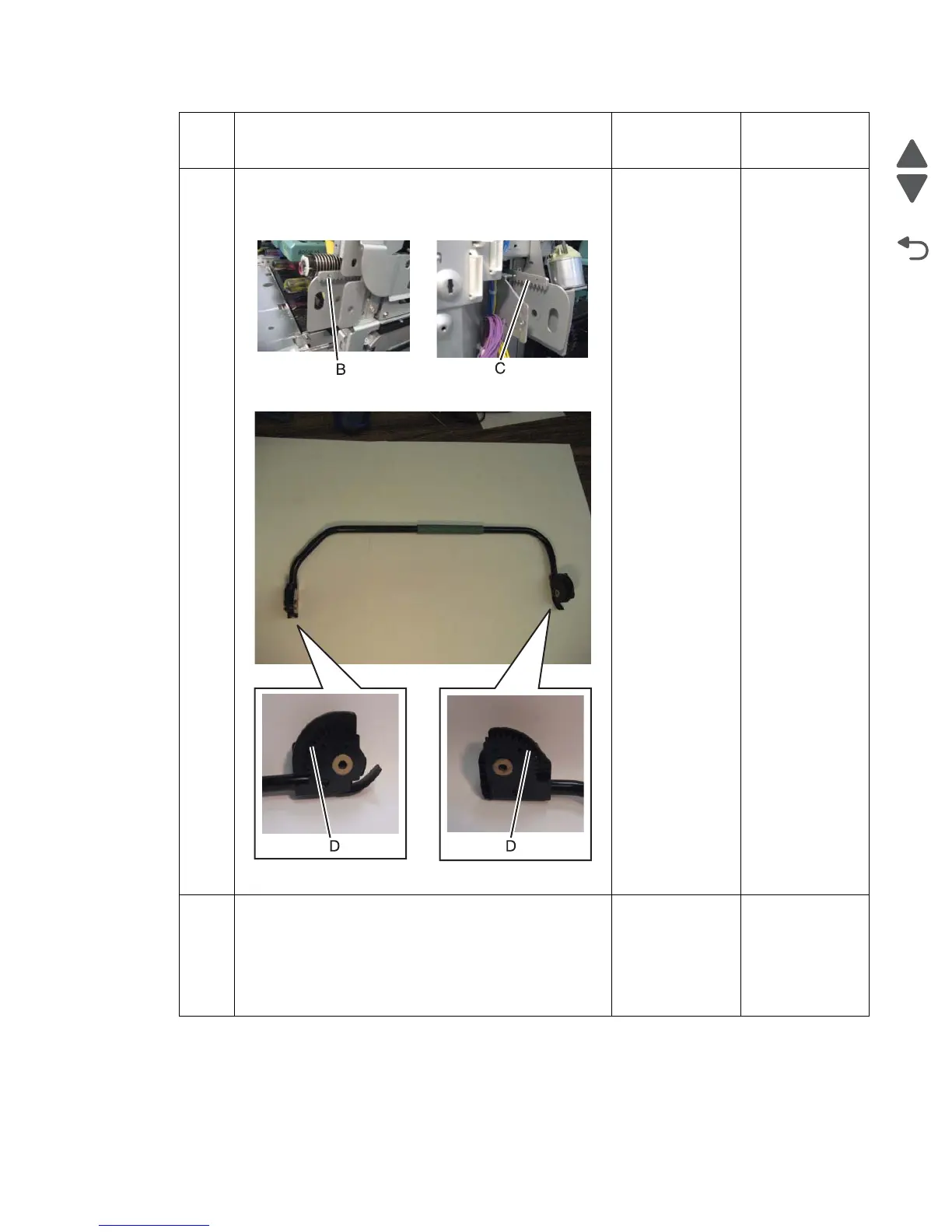

Check the gear teeth on the following parts for damage:
• Left transfer belt lift assembly plunger (B)
• Right transfer belt lift assembly plunger (C)
• Transfer belt lift handle (D)
Are the gear teeth on any of these parts damaged?
Replace the
appropriate
assemblies. See
“Left transfer
belt lift
assembly
removal” on
page 4-64 or
“Transfer belt
drive motor
assembly
removal” on
page 4-94.
Need correct
links.
Go to next step.
4
Check for damage to the plastic guides on the following
parts:
• Left transfer belt lift assembly plunger
• Right transfer belt lift assembly plunger
Are the plastic guides on any of these parts damaged?
Replace the
appropriate
assemblies. See
xxx, xxx, or xxx.
Go to next step.
Step Check Yes No
