3X 500-sheet drawer (3TM)—media out actuator removal
1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)—media feed unit assembly
removal (tray 2)” on page 4-173 or “3X 500-sheet drawer (3TM)—media feed unit assembly removal (tray
3)” on page 4-171.

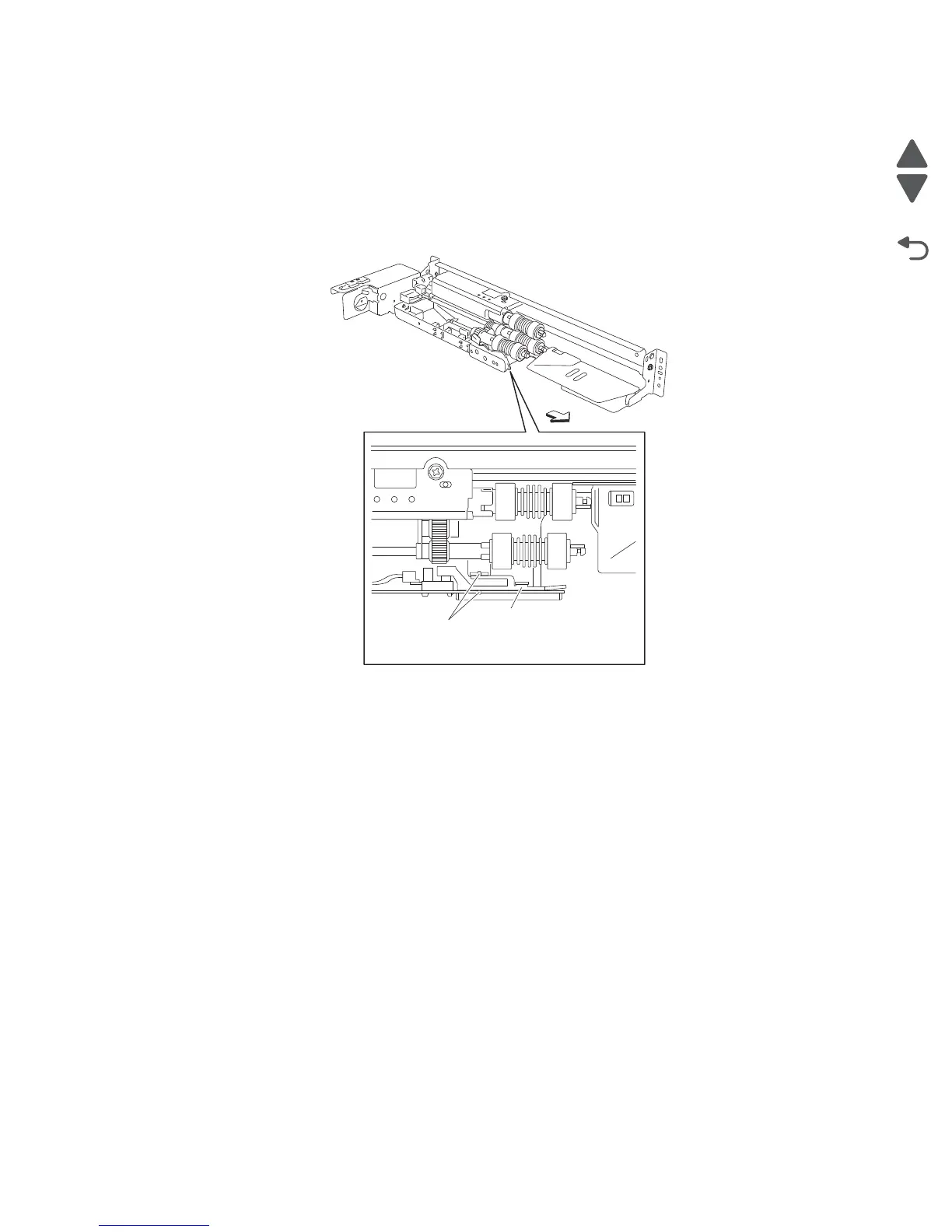

2. Release the two bosses on the media out actuator (A) from the media feed unit assembly.
3. Remove the media out actuator (A).
Front
Bosses
Lower view
A
