Lexmark C935 - Assembly 4: PC Cartridge and Developer Drive

7-6 MFP Service Manual
5057-XXX
Go Back
Previous
Next

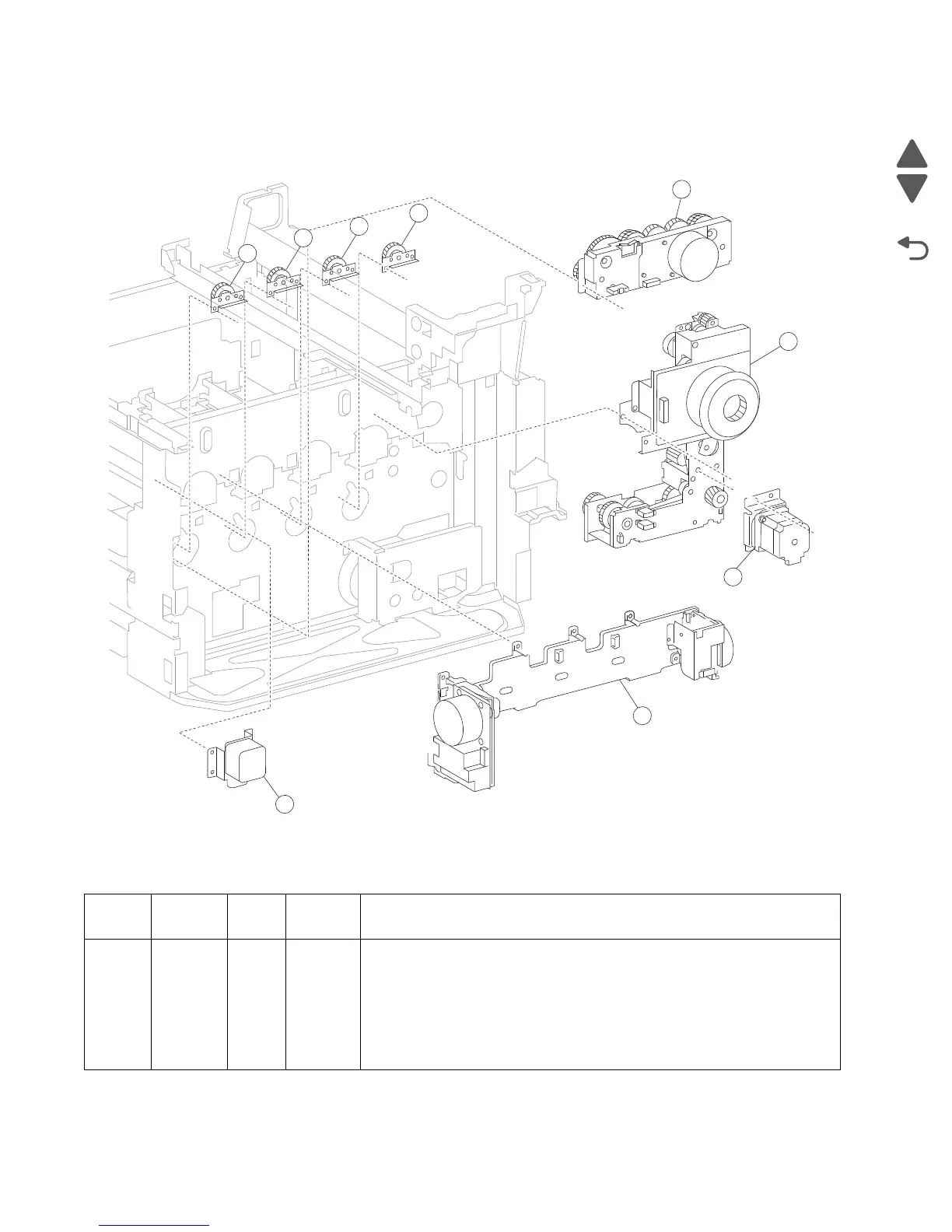

Assembly 4: PC cartridge and developer drive
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3671 4 1 Developer idler gear assembly
2 40X3669 1 1 CMY developer drive motor assembly
3 40X3670 1 1 Developer/transport drive motor assembly
4 40X3672 1 1 MPF/transport drive motor assembly
5 40X3667 1 1 CMYK PC cartridge drive motor assembly
6 40X3668 1 1 Transfer belt drive motor assembly
1
1
1
1
3
5
2
6
4
