3X 500-sheet drawer (3TM)—3TM controller card assembly removal
1. Remove the rear cover. See “3X 500-sheet drawer (3TM)—rear cover removal” on page 4-166.
2. Disconnect the nine connectors from the 3TM controller card assembly (A).
3. Remove the four screws securing the 3TM controller card assembly (A) to the machine.
4. Remove the 3TM controller card assembly (A).

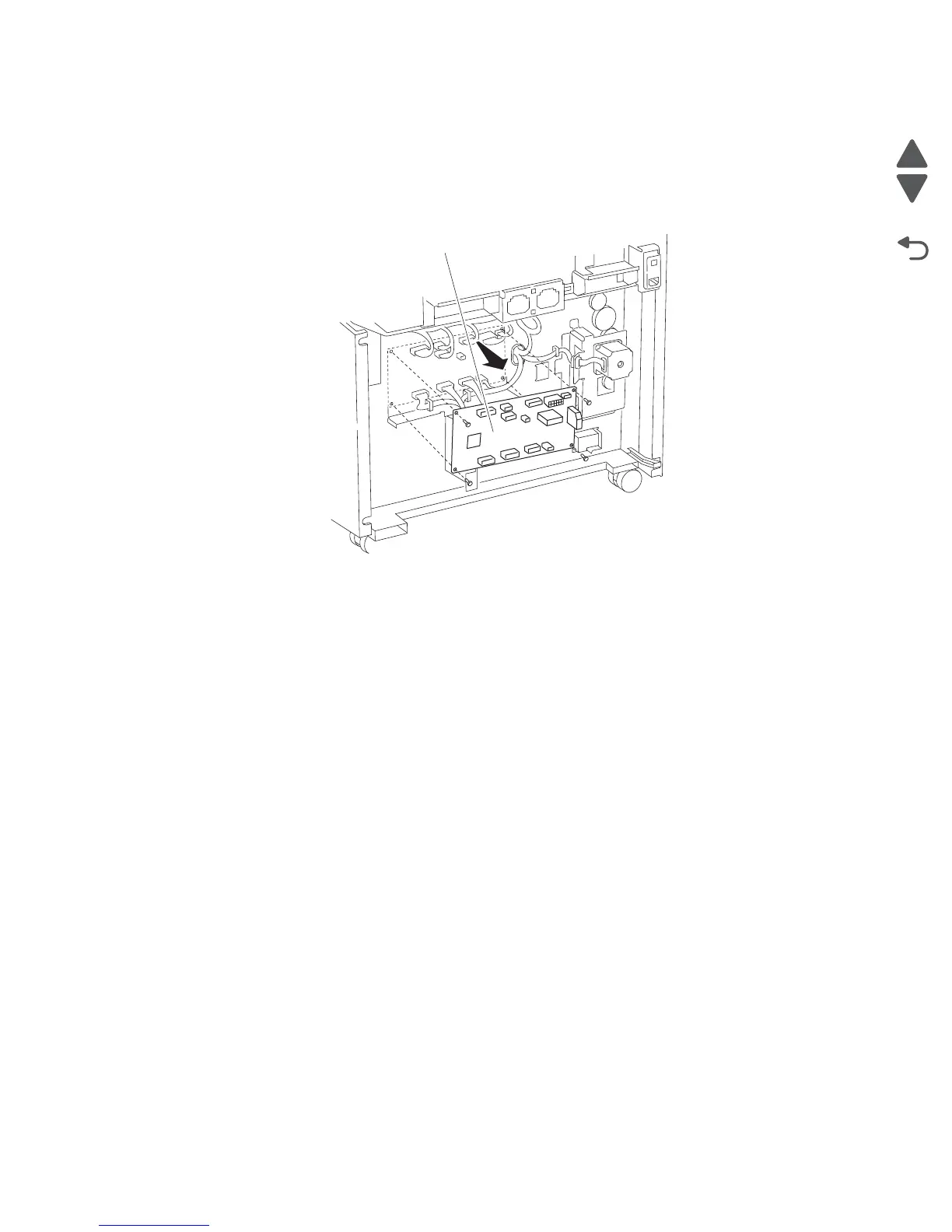

A
