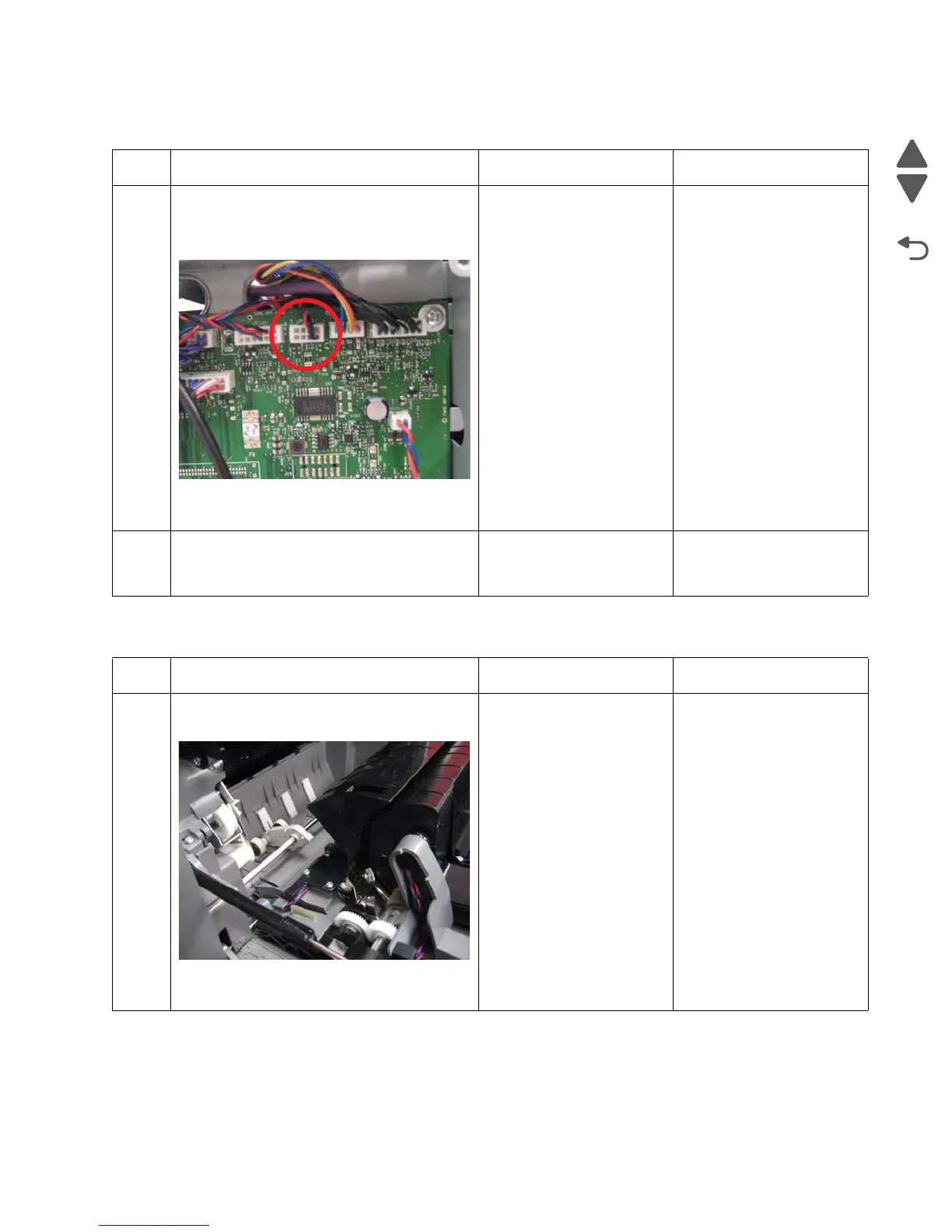

149.xx—Paper path redrive motor error service check
150.xx—Duplex motor error service check
Step Questions / actions Yes No
1 Turn the printer off, and open the system
board shield. Check the cable in connector
JRDR1 for proper connection to the system
board.
Is the cable properly connected?
Go to step 2. Reseat the cable.
2
Replace the redrive motor. See “Redrive
motor removal” on page 4-133.
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-149.
Problem solved.
Step Questions / actions Yes No
1 Open the left access door assembly, and
check the duplex assembly gears for damage.
Is the duplex assembly damaged?
Replace the duplex
assembly. See “Staging
paper path reference
edge assembly removal”
on page 4-140.
Go to step 2.
