4-180 Service Manual

7562

Go Back

ADF feed 1-way bearing and gears removal

See “ADF feed and drive” on page 7-25 for the part number.

1. Remove the ADF feed drive motor assembly. See “ADF feed drive motor assembly removal” on

page 4-180.

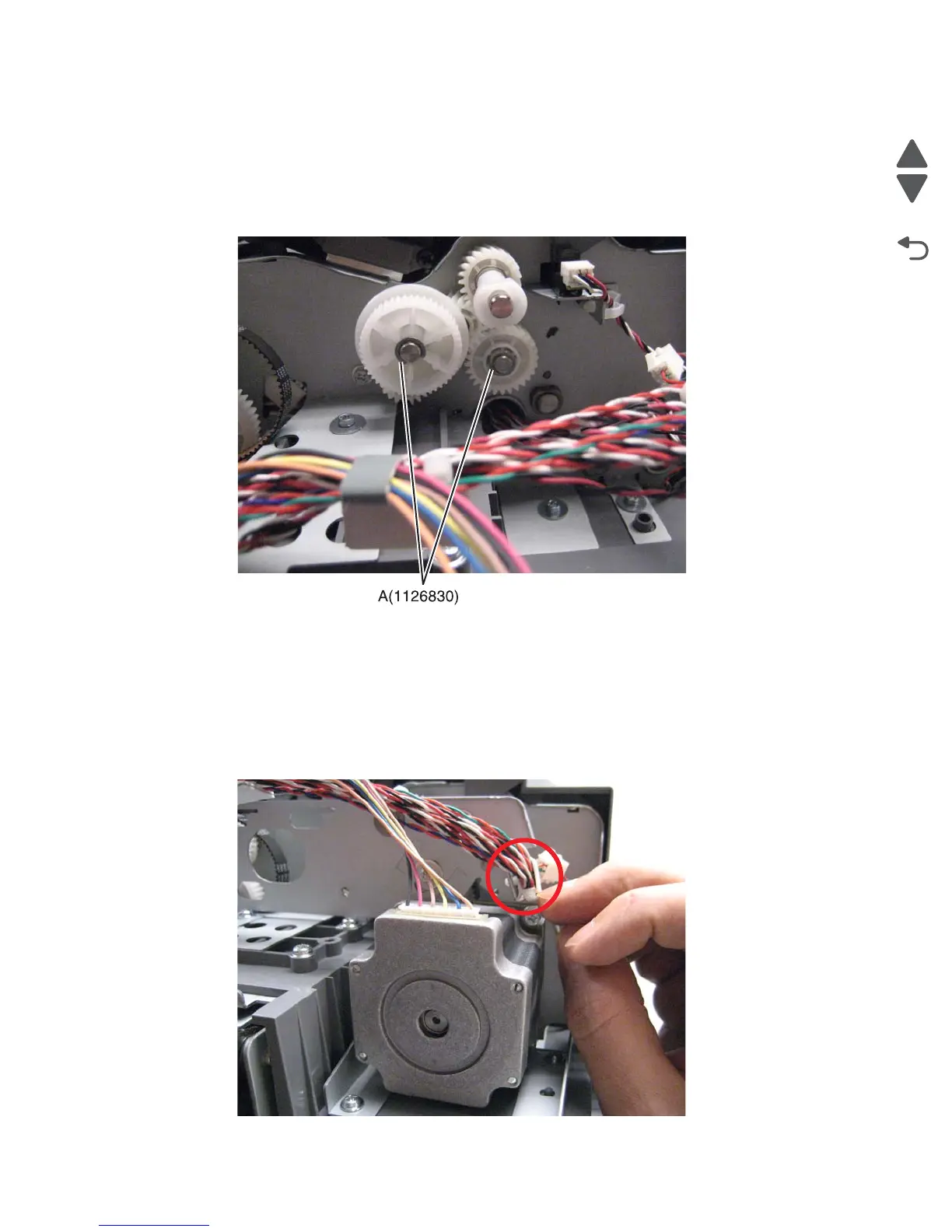

2. Remove the two E-clips (A).

3. Remove the ADF feed 1-way bearing and gears.

ADF feed drive motor assembly removal

See “ADF feed and drive” on page 7-25 for the part number.

1. Remove the ADF transport motor bracket assembly with cable. See “ADF transport drive motor bracket

assembly with cable removal” on page 4-200.

2. Open the clip to release the cables attached to the right side of the assembly.
